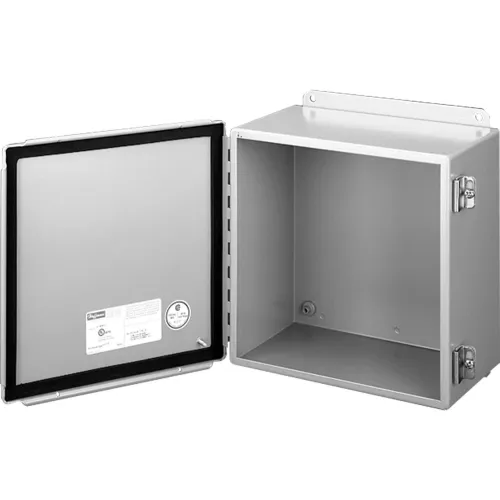

Hoffman A1210CH, Continuous Hinge W/Clamps, Type 12, 12.00X10.00X5.00, Steel/Gray

This easy-to-open, continuous hinge enclosure features screw-down clamps for secure closure and can be used in a wide variety of applications.

Features:
  • 16 or 14 gauge steel (see table)
  • Seams continuously welded and ground smooth
  • Continuous hinge
  • External screw clamps are quick and easy to operate
  • Bonding provision on door
  • External wall-mounting brackets
  • Oil-resistant gasket
  • Weldnuts provided for mounting optional panels and terminal block kits in size 6.00 x 4.00 in. (152 x 102 mm) and larger

  • BRAND Hoffman
  • WIDTH INCHES 10
  • DEPTH INCHES 5
  • HEIGHT INCHES 12
  • MANUFACTURERS PART NUMBER A1210CH
  • PACKAGE QUANTITY 1
  • TYPE 12
  • CONSTRUCTION Steel
  • K MM 14
  • K INCHES 0.56
  • P MM 25
  • P INCHES 1
  • V INCHES 0.25
  • PANEL SIZE D X E (INCHES) 10.75 x 8.88
  • CONDUCTIVE PANEL A12P10G
  • V MM 6
  • PANEL SIZE D X E (MM) 273 x 226
  • DESCRIPTION Continuous Hinge with Clamps
  • MOUNTING G X H INCHES 12.75 x 8.00
  • OVERALL L X W MM 343 x 278
  • OVERALL L X W INCHES 13.50 x 10.94
  • MOUNTING G X H MM 324 x 203
  • T MM 229
  • T INCHES 9
  • UL LISTED 50, 50E
  • J INCHES 4.62
  • J MM 117
  • PANEL A12P10
  • GAUGE 14
  • F INCHES 4.53
  • F MM 115
  • A X B X C INCHES 12.00 x 10.00 x 5.00
  • A X B X C MM 305 x 254 x 127
  • COLOR Gray
  • Y MM 16
  • Y INCHES 0.62
