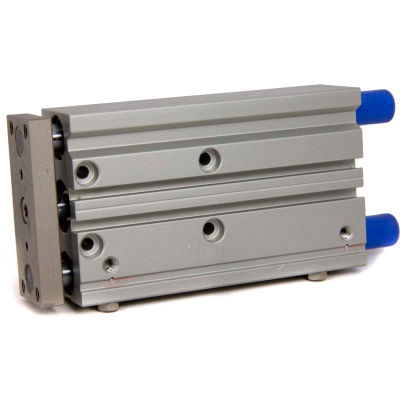

Bimba-Mead Air Linear Guided Slide MTCL-12X60-S-T, Ball Bearing, M5X0.8 Port, 12mm Bore, 60mm Stroke
MFD's Extruded Thruster is a rugged, guided actuator with a cylinder integral to the thruster block. The sleek body incorporates a groove for switch mounting for a clean, space-efficient package. The thrusters can be mounted with screws from the top, bottom, or base or by using T-slots on the bottom. Internal linear ball bushings are ideal superior performance in applications where higher speed and alignment are critical.
Features
MFD's Extruded Thruster is a rugged, guided actuator with a cylinder integral to the thruster block. The sleek body incorporates a groove for switch mounting for a clean, space-efficient package. The thrusters can be mounted with screws from the top, bottom, or base or by using T-slots on the bottom. Internal linear ball bushings are ideal superior performance in applications where higher speed and alignment are critical.
Features
- M5X0.8 Port Size
- Lubrication Not Required
- 213 Proof Pressure PSI
- 18 to 142 Pressure Range PSI
- 23 to 158°F Temperature Range
- Double Acting
- Fluid Air (Clean/Dry)
- Bumper Cushion Type
- ± 0.08° Non-Rotate Tolerance
- 12mm Cylinder Bore
- 60mm Cylinder Stroke
- Ball Bearing Guided Style
Product Details
- Fluid Air (Clean/Dry)
- Description Extruded Thruster Ball Bearing
- Cushion Type Bumper
- Action Double Acting
- Proof Pressure 213 psi
- Temperature Range 23 to 158 °F
- Guided Style Ball Bearing
- Brand Bimba-Mead
- Pressure Range 18 to 142 psi
- Series MTCL
- Lubrication Not Required
- Non Rotate Tolerance ± 0.08°
- Manufacturers Part Number MTCL-12X60-S-T
Weights & Dimensions
- Cylinder Bore 12mm in
- Cylinder Stroke 60mm
- Port Size M5X0.8 in
Customer Review
Product Q & A
There are no questions for this product.

Bimba-Mead Air Linear Guided Slide MTCL-12X60-S-T, Ball Bearing, M5X0.8 Port, 12mm Bore, 60mm Stroke
$295.95
