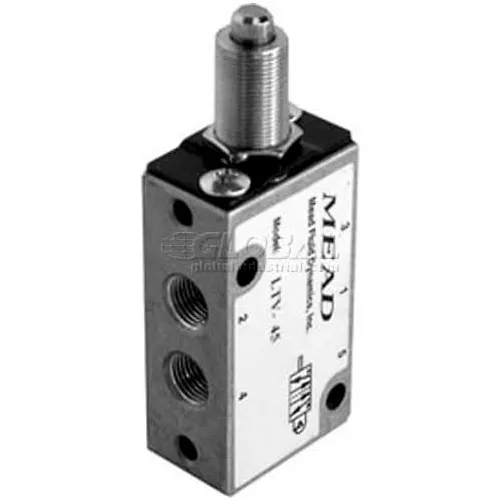

Bimba-Mead Air Valve LTV-45, 5 Port, 2 Pos, Mechanical, 1/8" NPTF Port, Straight Plunger Actr

Bimba-Mead Air Valve LTV-45, 5 Port, 2 Pos, Mechanical, 1/8" NPTF Port, Straight Plunger Actr

Item #: WBB571854

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $121.95

Save $6.10 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Bimba-Mead Shutoff/Relief Valve MGZ300-10-T, 3/8" NPT, Bracket

Bimba-Mead Shutoff/Relief Valve MGZ300-10-T, 3/8" NPT, Bracket

Free Shipping on orders $75+ Eligible items will ship for free with a purchase of $75 or more. Some restrictions apply. Click here to learn more.

Bimba-Mead Air Valve MV-15, 3 Port, 2 Pos, Mechanical, 1/8" NPTF Port, Roller Leaf Actuator

Bimba-Mead Air Valve MV-15, 3 Port, 2 Pos, Mechanical, 1/8" NPTF Port, Roller Leaf Actuator

Free Shipping on orders $75+ Eligible items will ship for free with a purchase of $75 or more. Some restrictions apply. Click here to learn more.

Bimba-Mead Air Valve MV-140, 3 Port, 2 Pos, Manual, 1/8" NPTF Port, Palm Actuator

Bimba-Mead Air Valve MV-140, 3 Port, 2 Pos, Manual, 1/8" NPTF Port, Palm Actuator

Free Shipping on orders $75+ Eligible items will ship for free with a purchase of $75 or more. Some restrictions apply. Click here to learn more.

Bimba-Mead Air Valve LTV-45, 5 Port, 2 Pos, Mechanical, 1/8" NPTF Port, Straight Plunger Actr

Light-Touch, Snap Acting Control Valve LTVs are compact 1/8" ported 4-way valves that may be actuated by hand, remote air signal, electric signal, or mechanically by machine element. Ideal for powering small or medium sized cylinders and for piloting larger valves.

  • LENGTH INCHES 1-1/4
  • WIDTH INCHES 3/4
  • HEIGHT INCHES 3-11/32
  • BRAND Bimba-Mead
  • MANUFACTURERS PART NUMBER LTV-45
  • TEMPERATURE RANGE 0°F to 115°F
  • ACTUAL STROKE DISTANCE OVER 0.094
  • SPOOL Aluminum
  • PRESSURE 25 to 125 PSI
  • LUBRICATION Petroleum Based Oil
  • ACTUATION FORCE AT 80 PSI 13 oz.
  • FLOW AT 100 PSI 14 SCFM
  • RESPONSE 20-30 ms
  • FLOW Cv = 1.2
  • PORT SIZE 1/8"
  • ACTUAL STROKE DISTANCE FULL 0.016
  • FILTRATION 40 Micron
