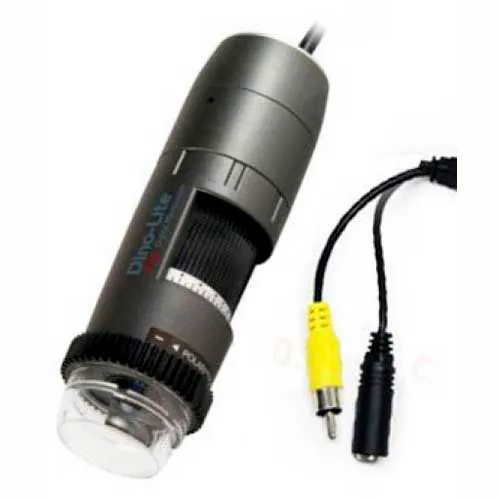

The AM5212NZT Edge Series features a TV Component output interface combined with revamped optics and 960H sensor technology, it is the latest upgrade to existing TV models such as the AM4112 series. The 960H sensor has a resolution of 960 x 480. This model has a 20x - 220x magnification range and a built on polarizer to help suppress unwanted glare or reflections. The MicroTouch button on this model is configured to toggle the LEDs on/off. No computer or software required for this model that connects directly to a monitor or TV via Video Component connection.
Weights & Dimensions
- Dimensions 10.5 (L) x 3.2 (D) cm
Product Details
- Measurement Function No
- Operating System No Software Required
- Lighting 8 White LEDs
- Description Edge Handheld Digital Microscope with TV Component Output
- Working Distance Standard
- Magnification Lock Yes
- Interface TV (RCA)
- Sensor CMOS
- Polarized Yes
- Resolution 960 x 480 pixels
- Package Includes Microscope, Alternate End Caps
- Magnification Range 20X - 220X
- Type Digital Microscope
- Brand Dino-Lite
- Package Quantity 1
- Material Aluminum Alloy
- Manufacturers Part Number AM5212NZT
- Lens Material Glass
- Microtouch Sensor Yes
- Frame Rate Up to 60 FPS
Warranty
- Warranty 2 yr
Compliance & Certifications
- Certifications CE, FCC
