AmScope MU300 3MP USB2.0 Microscope Digital Camera & Software

Questions & Answers (0)
was $217.49
Save $70.54 (32.43%)
Free Shipping Usually ships in 2 to 5 days
This 3MP digital camera for microscopes is designed to capture still images, as well as stream and record live video on Windows, Mac, and Linux computers. The user-friendly, stand-alone software for Windows XP/Vista/7/8/10 offers advanced features, including stitching, EDF (Extended Depth of Focus), video-recording, and measurement functions. It allows you to make notes, shapes, watermarks, and precise measurements with ease. Preview and capture resolutions can be set independently, allowing you to simultaneously view high-speed, low-resolution live video, while capturing higher-resolution images or video. The software for Linux and Mac allow you to capture still images and record video, as well as control color and exposure.

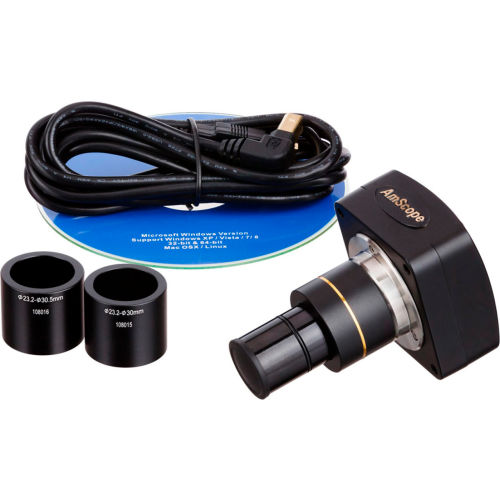

Designed using the C-mount standard, the camera with the included reduction lens and two sizing-adapters can fit 23mm, 30mm, and 30.5mm photo ports and ocular ports. The reduction lens increases the field-of-view to better match what's seen through the eyepieces. Using a standard USB 2.0 connection, the camera is easy to install.

Camera Specifications:
  • Sensor: Aptina MT9T001 CMOS (color)
  • Sensor Size: 1/2" (6.55mm(H) x 4.92mm(V), diagonal 8.19mm)
  • Reduction Lens: 0.5X
  • Resolution: 2048x1536 (approx. 3.2MP)
  • Pixel Size: 3.2μm x 3.2μm
  • G Sensitivity: 1.0v / lux-sec (550nm)
  • SN Ratio: 43dB
  • Dynamic Range: 61dB
  • Scan Mode: Progressive
  • Binning: 1x1, 2x2, 3x3
  • Frame Rate: 43fps @ 680x510, 22fps @ 1024x768, 8fps @ 2048x1536
  • Exposure: 0.128-2000ms, ROI Auto & Manual
  • A/D Converter: 12-bit Parallel, 8-bit R.G.B to computer
  • Spectral Range: 380-650nm (with IR-filter)
  • White balance: ROI White Balance/ Manual Temp-Tint Adjustment
  • Color Rendering Technique: Ultra Fine Color Engine
  • Capture/Control API: Native C/C++, C#, Directshow, Twain, Labview
  • Recording System: Still Picture and Movie
  • Cooling System: Natural
  • Operating Temperature: -10° to 50°C
  • Storage Temperature: -20° to 60°C
  • Operating Humidity: 30-80%RH
  • Storage Humidity: 10-60%RH
  • Power Supply: DC 5V over USB Port
Software Features:
  • Operating System: Windows XP/Vista/7/8/10 (32 & 64 bit), Mac OS X, Linux
  • PC Requirements: CPU equals to Intel Core2 2.8GHz or higher, Memory: 2GB or more, USB2.0 port
  • Advanced software for Windows:
    • offers Stitching, EDF, video recording and measurement functions
    • conducts measurements for lengths, angles, arcs, areas and etc.
    • saves still images in BMP, TIFF, JPG, PICT, PTL or other formats
    • live video and still image capture can be set in different resolutions simultaneously
    More Features: add layers, watermarks, mosaics, tiles; adjust color balance, exposure, saturation, contrast, orientation; change resolution, histogram, granulation, diffusion; transform images via edge detection, digital image warping; conducts measurements for single, parallel or perpendicular lines and rectangular, elliptical and irregular areas; adds notes, measurements, text, arrows, labels, and etc. using customizable text with different sizes and colors; conducts measurements in microns, millimeters, centimeters, inches, feet, and etc. under any magnification powers with desired tolerances
  • Life-time free software upgrades
Packing List:
