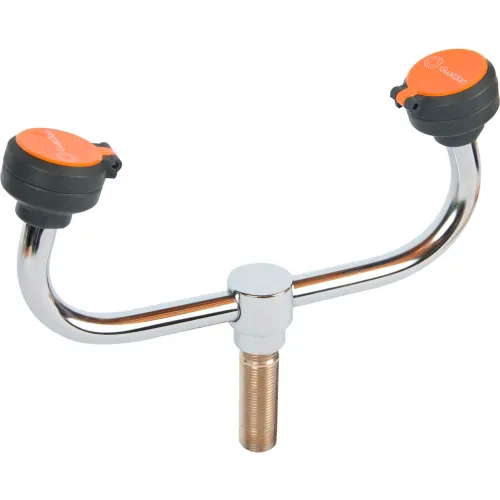

Guardian Equipment AP470-100R Eyewash Outlet Head Assembly, 2 GS-Plus Spray Heads, Replacement

Application: Drench hose unit for deck mounting. Ideal for rinsing any part of user's eye, face or body. Note: Under ANSI Z358.1 - 2009, drench hose units supplement, but do not replace, other types of emergency equipment. Spray Head: Single FS-Plus™ spray head. Spray head has "flip top" dust cover, internal flow control and filter to remove impurities from the water flow. Valve: Forged brass squeeze valve activated by stainless steel lever handle. Valve has replaceable stainless steel seat for exceptional durability. Valve closes when lever handle is released. Hose: 8' reinforced ...

Application: Combination eye/face wash and shower safety station. Eye/face wash features a stainless steel bowl with two large FS-Plus™ spray-type outlet heads that deliver a flood of water for rinsing eyes and face. Shower Head: 10" diameter orange ABS plastic with 20 GPM flow control. Shower Valve: 1" IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and PTFE seals. Furnished with stainless steel actuating arm and 29" stainless steel pull rod. Spray Head Assembly: Two FS-Plus™ spray heads. Each head has a "flip top" dust cover, ...

G1750 Wall mounted eye/face wash features 12" stainless steel bowl with anodized aluminum wall bracket. Never lose dust covers again! Spray head assembly has two Fine Spray outlet heads with "flip-top" dust covers mounted on chrome plated brass supply arms. Activated by a ½" IPS chrome plated brass stay-open ball valve with cast aluminum flag handle. Bowl acts like a sink to drain water away. Unit meets ANSI Z358.1 standard as primary eye/face wash. Fully factory assembled and water tested. Complete with ANSI compliant identification sign.

Application: Drench hose unit for wall mounting. Ideal for rinsing any part of users eye, face or body. Under ANSI Z358.1 - 2009, drench hose units supplement, but do not replace, other types of emergency equipment Spray Head: Single FS-Plus™ spray head. Spray head has "flip top" dust cover, internal flow control and filter to remove impurities from the water flow Valve: Forged brass squeeze valve activated by stainless steel lever handle. Valve has replaceable stainless steel seat for exceptional durability. Valve closes when lever handle is released Hose: 8' reinforced PVC hose. ...

Application: Barrier-Free, Auto Flow™ eyewash for mounting on counter. Eyewash outlet assembly is lowered and extended to permit access by wheelchair user. ADA compliance is dependent on 27" knee clearance under counter and 34" maximum counter height. Spray heads swing down from storage to operational position, activating water flow. Available in a variety of spray head configurations to minimize obstructions at a sink. Spray Head Assembly: Two GS-Plus™ spray heads. Each head has a "flip top" dust cover, internal flow control and filter to remove impurities from the water flow. ...
