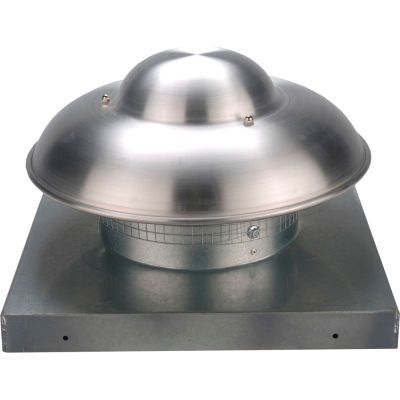

This downblast fan features die formed axial fan blades riveted to a steel hub. Suitable for roof or wall mounting. Spun aluminum housing for weather resistant durability. Includes birdscreen, totally enclosed, permanently lubricated, ball bearing motor and a disconnect switch, rated for 110°F. 115V Single Phase operation. 500 CFM. Horsepower rating based upon maximum speed/load.
Weights & Dimensions
- Fan Diameter 10 in
- Base Dim. 19 in²
- Height 11-4/5 in
- Hood Dimension 18.3
- Weight 24 lbs
Product Details
- RPM High 1,500 rpm
- Voltage 115 V
- Description Downblast Ventilator
- Horsepower 1/32 HP
- Amperage 1.10 A
- CFM High 500 CFM
- Phase 1
- Cycle 60
- Package Quantity 1
- Brand Continental Fan
- Drive Type Direct Drive
- Material Aluminum
- Hertz 60 Hz
- Manufacturers Part Number RMD-10-11
Warranty
- Warranty 1 yr
There are 5 questions and 5 answers for this product.
-
Can this be mounted to a pitched roof or is a curb needed so the unit will sit level?
Question Asked By: Ted, June 24, 2019
Answer This Question
Question Answered By:
-
Product Expert, June 24, 2019
Yes, a pitched curb would be needed. This item is available via special order through our sales team at 1.888.978.7759. Thank you for your question.
-
-
how many speeds is this fan im looking for a 2 speed fan
Question Asked By: Greg, February 21, 2017
Answer This Question
Question Answered By:
-
anonymous
Hello Greg, This fan is a single speed fan. Thank you for your interest in our product!
-
-
Please tell me what roof curbs you have for this fan, Need shortest poss. I cannot find. Thanks
Question Asked By: Mark, September 18, 2015
Answer This Question
Question Answered By:
-
Product Expert, September 18, 2015
Please contact customer service at 1.888.978.7759. They will be able to help
-
-
How many amps?
Question Asked By: Mark, September 18, 2015
Answer This Question
Question Answered By:
-
Product Expert, September 18, 2015
This is 1.1 amps
-
-
I need to know if this fan is UL Listed and what the ratings are. We need Class 1 Div. 2
Question Asked By: David, January 13, 2012
Answer This Question
Question Answered By:
-
Product Expert, January 13, 2012
The Axial Exhaust Fan is not class 1 Div. 2.
-
This product has a 12-month manufacturer's limited warranty for parts and a 12-month manufacturer's limited warranty for labor. Protect your purchase beyond the manufacturer's limited warranty.
Continental Fan RMD-10-11 Axial Exhaust Fan 500 CFM
