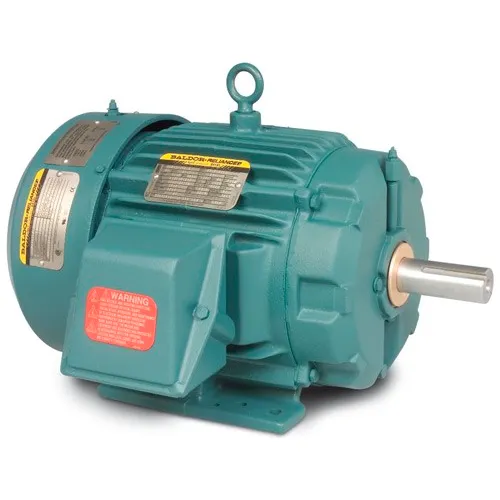

Baldor-Reliance Motor CECP84316T-4, 75HP, 1780RPM, 3PH, 60HZ, 365TC, TEFC, FOOT

Baldor-Reliance Motor, 300HP,1785RPM,3PH,60HZ,449T,TEFC Features: Heavy gauge steel and cast iron frames Roller bearings for heavy belted loads (not suitable for coupled loads) ISR® (Inverter Spike Resistant®) copper windings Low-loss electrical grade lamination steel Three year warranty Typical Applications: Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Class F insulated, 1.15 service factor. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque ...

Baldor-Reliance Motor, 200HP,1785RPM,3PH,60HZ,447T,TEFC Features: Designed and manufactured and tested to exceed the IEEE 841-1994 standards for severe duty TEFC induction motors Premium efficiency copper windings using Baldor-Reliance ISR (Inverter Spike Resistant)® magnet wire comply with CEE efficiency guidelines Inpro Seal® on fan and drive end shaft extensions 2-part yellow epoxy oxide primer (inside & outside) Gray epoxy paint and corrosion resistant hardware Reduced noise, vibration and mechanical tolerances Final test and vibration results shipped with motor Typical Applications: ...

Baldor-Reliance Motor, 75HP,3555RPM,3PH,60HZ,365TS,TEFC,FOOT, Features: Designed and manufactured and tested to exceed the IEEE 841-1994 standards for severe duty TEFC induction motors Premium efficiency copper windings using Baldor-Reliance ISR (Inverter Spike Resistant)® magnet wire comply with CEE efficiency guidelines Inpro Seal® on fan and drive end shaft extensions 2-part yellow epoxy oxide primer (inside & outside) Gray epoxy paint and corrosion resistant hardware Reduced noise, vibration and mechanical tolerances Final test and vibration results shipped with motor Typical ...

Baldor-Reliance Motor, 60HP,1780RPM,3PH,60HZ,364T,TEFC,FOOT, Features: Heavy gauge steel and cast iron frames Ball bearings ISR® (Inverter Spike Resistant®) copper windings Low-loss electrical grade lamination steel Three year warranty Typical Applications: Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Class F insulated, 1.15 service factor. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque applications and constant torque speed range with properly ...

Baldor-Reliance Motor, 250HP,1785RPM,3PH,60HZ,449T,TEFC Features: Built to 841XL design Upgraded electrical and mechanical design with NEMA Premium® efficient winding Inpro/Seal® VBX (thru 210 frame) VBXX bearing isolators on fan and drive end shaft extensions Epoxy paint provides IP56 enclosure Stainless breather drains Proprietary cast iron frames for reduced vibration and noise Terminal lugs on motor leads 5-year warranty Typical Applications: Petro-chemical, pulp and paper, cement, aggregate mining and other process industries requiring premium efficient motors designed, manufactured ...
