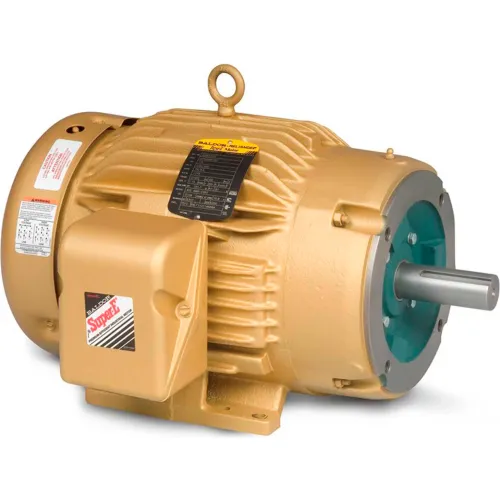

Actual product may differ from image shown
$8,418.00 up to 39% OFF
Price: $5,130.00
Customers Also Viewed
Features:
- Heavy gauge steel and cast iron frames
- Ball bearings
- ISR® (Inverter Spike Resistant®) copper windings
- Low-loss electrical grade lamination steel
- Three year warranty
Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Class F insulated, 1.15 service factor. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque applications and constant torque speed range with properly sized and adjusted variable frequency drives.
Weights & Dimensions
- Dimension C 27.76 in
- Weight 437
Product Details
- Power Factor 80
- Mounting Location Rigid
- Bearing Drive End 6311
- Poles 4
- Grease POLYREX EM
- Drive End Flange C-Face
- Nameplate RPM 1760 rpm
- Ambient Temperature 40 °C
- KVA Code J
- Insulation Class F
- RPM Range 1701-1800 rpm
- Bearing Opp Drive End 6309
- Voltage 230/460 V
- Frame 286TC
- Service Factor 1.15
- Horsepower 30 HP
- Enclosure Type Totally Enclosed
- Is_Motor Yes
- Phase 3
- Enclosure TEFC
- Amps @ 208V 78 A
- Full Load Efficiency 93.6
- Brand Baldor-Reliance
- Full Load Amps 76/38 FLA
- Design Code A
- Motor RPM 60 Hertz 1760 rpm
- Hertz 60 Hz
- Manufacturers Part Number CEM4104T
Compliance & Certifications
- DOE Code 010A
