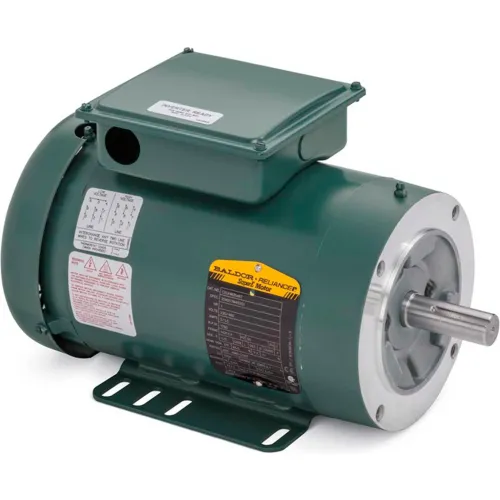

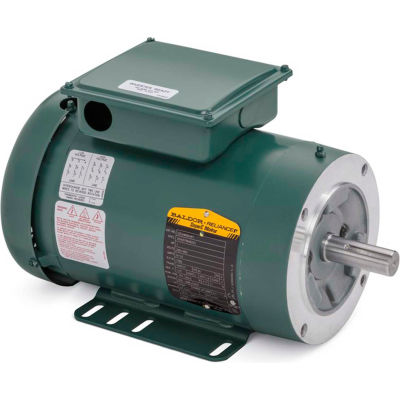

Baldor-Reliance Motor CEUHM3546T, 1HP, 1765RPM, 3PH, 60HZ, 143TYC, 3524M, TEFC, F

Baldor-Reliance Motor CEUHM3546T, 1HP, 1765RPM, 3PH, 60HZ, 143TYC, 3524M, TEFC, F

Item #: WBB388655

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$1,121.00 up to 39% OFF

Price: $684.00

$114.00/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Unit Handling Motor, VEUHM3546, 3 PH, 1 HP, 208-230/460 V, 1760 RPM, TEFC, 56C Frame

Baldor-Reliance Unit Handling Motor, VEUHM3546, 3 PH, 1 HP, 208-230/460 V, 1760 RPM, TEFC, 56C Frame

Baldor-Reliance Motor VEUHM3558T, 2HP, 1725RPM, 3PH, 60HZ, 145TC, 3532M, TEFC, F3

Baldor-Reliance Motor VEUHM3558T, 2HP, 1725RPM, 3PH, 60HZ, 145TC, 3532M, TEFC, F3

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Baldor-Reliance Motor, 1HP,1765RPM,3PH,60HZ,143TYC,3524M,TEFC,F

Features:
  • UL/CSA recognized and CE certified
  • CEUHM/VEUHM motors are Super-E® with NEMA Premium® efficiency
  • CUHM/VUHM motors are EPAct efficiency and all are inverter-ready
  • 143-145TY and 143-145TYC frame motors have a special base with 56, 143 and 145 slots used on OEM conveyors
  • 56-140 frames have low profile F3 top-mounted conduit box
  • 3 year warranty on Super-E® motors
Typical Applications:
Unit and baggage handling, conveyors, packaging equipment, machine tools, hoists, elevators and door operators.

Weights & Dimensions

  • Dimension C 13.29 in
  • Opposite End Bearing Size 6203
  • Weight 39

Product Details

  • Power Factor 71
  • Mounting Location Rigid
  • Bearing Drive End 6205
  • RPM 1760 rpm
  • Poles 4
  • Drive End Flange C-Face
  • Ambient Temperature 40 °C
  • KVA Code L
  • Insulation Class F
  • RPM Range 1701-1800 rpm
  • Voltage 208-230/460 V
  • Frame 143TCY
  • Service Factor 1.15
  • Horsepower 1 HP
  • Enclosure Type Totally Enclosed
  • Is_Motor Yes
  • Phase 3
  • Enclosure TEFC
  • Amps @ 208V 3.1 A
  • Full Load Efficiency 85.5
  • Brand Baldor-Reliance
  • Full Load Amps 3.1-3/1.5 FLA
  • Design Code B
  • Motor RPM 60 Hertz 1760 rpm
  • Hertz 60 Hz

Compliance & Certifications

  • Specification Number 35X057M492G1
