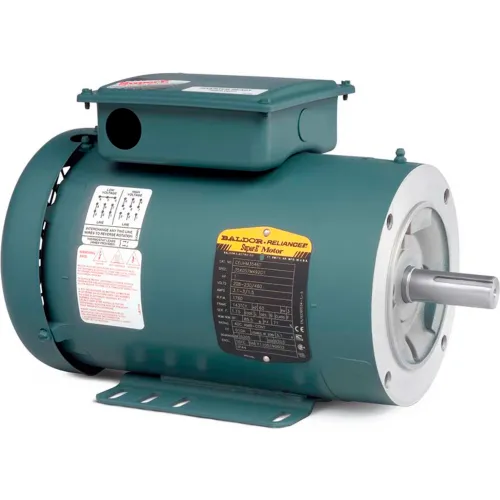

Baldor-Reliance Motor, 1.5HP,1760RPM,3PH,60HZ,145TYC,3533M,TEFC
Features:
Unit and baggage handling, conveyors, packaging equipment, machine tools, hoists, elevators and door operators.
Features:
- UL/CSA recognized and CE certified
- CEUHM/VEUHM motors are Super-E® with NEMA Premium® efficiency
- CUHM/VUHM motors are EPAct efficiency and all are inverter-ready
- 143-145TY and 143-145TYC frame motors have a special base with 56, 143 and 145 slots used on OEM conveyors
- 56-140 frames have low profile F3 top-mounted conduit box
- 3 year warranty on Super-E® motors
Unit and baggage handling, conveyors, packaging equipment, machine tools, hoists, elevators and door operators.
Weights & Dimensions
- Dimension C 14.17 in
- Opposite End Bearing Size 6203
- Weight 47
Product Details
- Power Factor 73
- Mounting Location Rigid
- Bearing Drive End 6205
- RPM 1760 rpm
- Poles 4
- Drive End Flange C-Face
- Ambient Temperature 40 °C
- KVA Code L
- Insulation Class F
- RPM Range 1701-1800 rpm
- Voltage 208-230/460 V
- Frame 145TYC
- Service Factor 1.15
- Horsepower 1-1/2 HP
- Enclosure Type Totally Enclosed
- Is_Motor Yes
- Phase 3
- Enclosure TEFC
- Amps @ 208V 4.5 A
- Full Load Efficiency 86.5
- Brand Baldor-Reliance
- Full Load Amps 4.5-4.4/2.2 FLA
- Design Code B
- Motor RPM 60 Hertz 1760 rpm
- Hertz 60 Hz
Compliance & Certifications
- Specification Number 35X057M493G1
