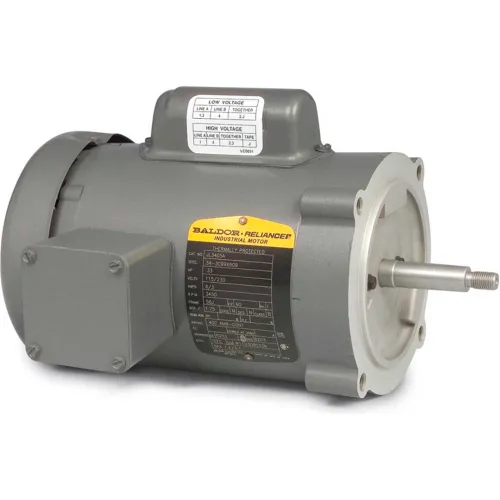

Baldor-Reliance Motor JL3503A, .5HP, 3450RPM, 1PH, 60HZ, 56J, 3420L, TEFC, F1

Actual product may differ from image shown

Baldor-Reliance Motor JL3503A, .5HP, 3450RPM, 1PH, 60HZ, 56J, 3420L, TEFC, F1

Item #: WBB390345

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$636.00 up to 38% OFF

Price: $396.95

Save $19.85 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Baldor-Reliance Motor VL1309A, 1HP, 3450RPM, 1PH, 60HZ, 56C, 3428L, OPEN, F1, N

Baldor-Reliance Motor VL1309A, 1HP, 3450RPM, 1PH, 60HZ, 56C, 3428L, OPEN, F1, N

Baldor-Reliance Motor VL1306A, .75HP, 3450RPM, 1PH, 60HZ, 56C, 3424L, OPEN, F1

Baldor-Reliance Motor VL1306A, .75HP, 3450RPM, 1PH, 60HZ, 56C, 3424L, OPEN, F1

US Motors Pump, 1 HP, 3-Phase, 3450 RPM Motor, EE506

US Motors Pump, 1 HP, 3-Phase, 3450 RPM Motor, EE506

Century T1102, Single Phase Jet Pump Motor - 115/230 Volts 3450 RPM 1HP

Century T1102, Single Phase Jet Pump Motor - 115/230 Volts 3450 RPM 1HP

Baldor-Reliance Motor EJMM3219T, 7.5HP, 3500RPM, 3PH, 60HZ, 184JM, 3646M, OPSB

Baldor-Reliance Motor EJMM3219T, 7.5HP, 3500RPM, 3PH, 60HZ, 184JM, 3646M, OPSB

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Marathon Motors Explosion Proof Motor, G654A, 056C17G5316, 1/2HP, 115/208-230V, 1800RPM, 1PH, EPFC

Marathon Motors Explosion Proof Motor, G654A, 056C17G5316, 1/2HP, 115/208-230V, 1800RPM, 1PH, EPFC

Baldor-Reliance Motor, .5HP,3450RPM,1PH,60HZ,56J,3420L,TEFC,F1

Features:
  • Diecast aluminum end plates with machined steel bearing seat insert.
Typical Applications:
Residential and industrial pumps, swimming pool pumps, etc.

Weights & Dimensions

  • Dimension C 10.29 in
  • Weight 25 lbs

Product Details

  • Power Factor 69
  • Mounting Location C-Face Footless
  • Bearing Drive End 6203
  • RPM 3450 rpm
  • Poles 2
  • Drive End Flange C-Face
  • Ambient Temperature 40 °C
  • KVA Code K
  • Insulation Class B
  • RPM Range 3001-3600 rpm
  • Voltage 115/230 V
  • Bearing Opp Drive End 6203
  • Frame 56J
  • Service Factor 1.6
  • Horsepower 1/2 HP
  • Enclosure Type Totally Enclosed
  • Is_Motor Yes
  • Enclosure TEFC
  • Phase 1
  • Full Load Efficiency 62
  • Brand Baldor-Reliance
  • Full Load Amps 7.4/3.7 FLA
  • Design Code N
  • Motor RPM 60 Hertz 3450 rpm
  • Hertz 60 Hz
  • Manufacturers Part Number JL3503A
