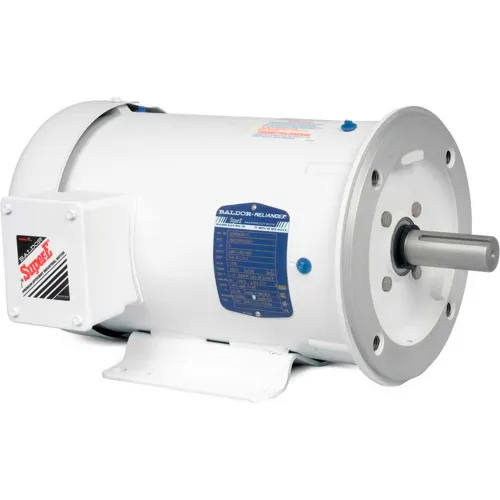

Baldor-Reliance Motor CEWDM3559T, 3HP, 3475RPM, 3PH, 60HZ, 145TC, 3540M, TEFC, F1

Baldor-Reliance Motor, .5HP,1750RPM,3PH,60HZ,56C,3516M,TEFC,F1 Features: All external surfaces 300 series stainless steel: motor frame, endplates, conduit box, shaft, and base Moisture resistant 200°C ISR® (Inverter Spike Resistant) magnet wire Four condensate drains in each endplate Enplate rabbets sealed and conduit box gasketed Lip seals Especially effective in highly corrosive environments where paint or other finishes do not hold up. Typical Applications: Food processing, packaging, outdoor and highly corrosive environments.

Baldor-Reliance Motor, 2HP,1725RPM,3PH,60HZ,145T,3532M,TEFC,F1 Features: Moisture sealant on bolt heads, between frame and endplates Neoprene gaskets Double sealed bearings Forsheda® running contact v-ring slinger Stainless steel shaft Electrostatically applied epoxy finish Class F insulation Tropicalized Typical Applications: Food processing and other applications where motor is regularly exposed to high pressure wash down.

Baldor-Reliance Motor, ... Features: Standard NEMA BA dimension 300 series stainless steel hardware Moisture sealant on bolt heads, between frame and end plates Neoprone gaskets Power off manual release Resets automatically NEMA Premium® Efficiency and inverter-ready 230/460V brakes are connected in conduit box Typical Applications: Food processing and other applications that regularly expose the motor to high pressure washdown.

Baldor-Reliance Motor, ... Features: Stainless steel motor frame, endplates, conduit box, shaft and base Moisture resistant ISR® Four condensate drains in each endplate Endplate rabbets sealed and conduit box gasketed Rotating non-contact labyrinth seals NEMA Premium® efficiency 3 year warranty Typical Applications: Food processing, packaging, outdoor and highly corrosive environments

Baldor-Reliance Motor, ... Features: Stainless steel motor frame, endplates, conduit box, shaft and base Moisture resistant ISR® Four condensate drains in each endplate Endplate rabbets sealed and conduit box gasketed Rotating non-contact labyrinth seals NEMA Premium® efficiency 3 year warranty Typical Applications: Food processing, packaging, outdoor and highly corrosive environments
