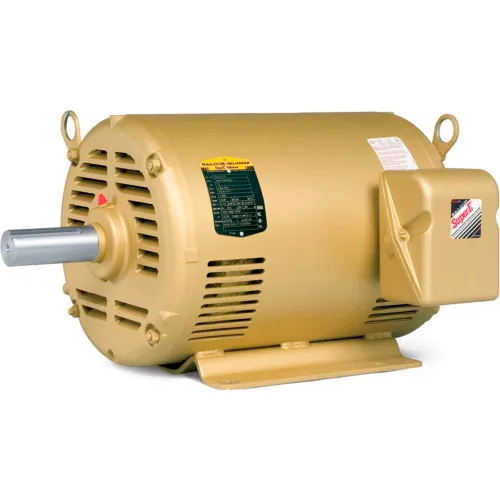

Actual product may differ from image shown
$5,701.00 up to 38% OFF
Price: $3,545.00
$590.83/mo
suggested payments with 6 month special financing OR Save 5%on Purchase.
Customers Also Viewed
Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black
Free Shipping
Baldor-Reliance Motor, 30HP,1770RPM,3PH,60HZ,286T,4052M,OPSB,F2
Features:
Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque applications and 20:1 constant torque speed range with properly sized and adjusted variable frequency drives.
Features:
- Heavy duty frames
- Ball bearings
- Moisture resistant ISR® (Inverter Spike Resistant) copper windings
- Low-loss electrical lamination grade steel
- Three year warranty.
Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque applications and 20:1 constant torque speed range with properly sized and adjusted variable frequency drives.
Weights & Dimensions
- Dimension C 25.06 in
- Weight 372
Product Details
- Power Factor 85
- Mounting Location Rigid
- Bearing Drive End 6311
- Poles 4
- Grease POLYREX EM
- Drive End Flange Standard
- Nameplate RPM 1770 rpm
- Ambient Temperature 40 °C
- KVA Code G
- Insulation Class F
- RPM Range 1701-1800 rpm
- Bearing Opp Drive End 6309
- Voltage 230/460 V
- Frame 286T
- Service Factor 1.15
- Horsepower 30 HP
- Enclosure Type Open/Drip Proof
- Is_Motor Yes
- Phase 3
- Enclosure OPSB
- Amps @ 208V 74.1 A
- Full Load Efficiency 94
- Brand Baldor-Reliance
- Full Load Amps 70/35 FLA
- Design Code B
- Motor RPM 60 Hertz 1770 rpm
- Hertz 60 Hz
- Manufacturers Part Number EFM2535T
Compliance & Certifications
- DOE Code 010A
