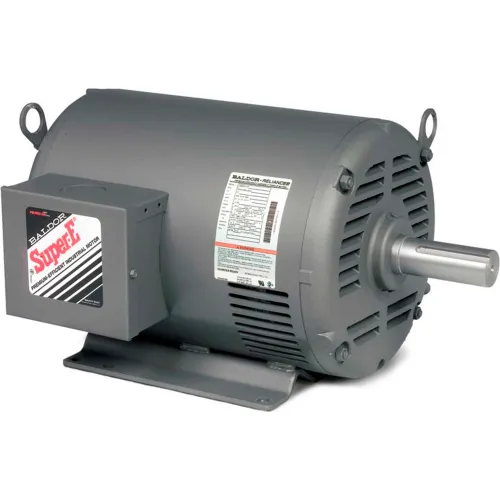

Baldor-Reliance Motor EHM3211T, 3HP, 1755RPM, 3PH, 60HZ, 182T, 3634M, OPSB, F1

Baldor-Reliance Motor EHM3211T, 3HP, 1755RPM, 3PH, 60HZ, 182T, 3634M, OPSB, F1

Item #: WBB390427

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$1,139.00 up to 38% OFF

Price: $709.00

$118.17/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor EHM3154T, 1.5HP, 1760RPM, 3PH, 60HZ, 145T, 3529M, OPSB, F

Baldor-Reliance Motor EHM3154T, 1.5HP, 1760RPM, 3PH, 60HZ, 145T, 3529M, OPSB, F

Baldor-Reliance Motor EHM3311T, 7.5HP, 1770RPM, 3PH, 60HZ, 213T, 3733M, OPSB, F

Baldor-Reliance Motor EHM3311T, 7.5HP, 1770RPM, 3PH, 60HZ, 213T, 3733M, OPSB, F

Baldor-Reliance Motor EHFM3218T, 5HP, 1750RPM, 3PH, 60HZ, 184T, 3639M, OPSB, F2

Baldor-Reliance Motor EHFM3218T, 5HP, 1750RPM, 3PH, 60HZ, 184T, 3639M, OPSB, F2

Baldor-Reliance HVAC Motor, EM2515T-G, 3 PH, 20 HP, 230/460 V, 1765 RPM, OPSB, 256T Frame

Baldor-Reliance HVAC Motor, EM2515T-G, 3 PH, 20 HP, 230/460 V, 1765 RPM, OPSB, 256T Frame

Baldor-Reliance HVAC Motor, EM3558T-G, 3 PH, 2 HP, 208-230/460 V, 1755 RPM, TEFC, 145T Frame

Baldor-Reliance HVAC Motor, EM3558T-G, 3 PH, 2 HP, 208-230/460 V, 1755 RPM, TEFC, 145T Frame

Baldor-Reliance HVAC Motor, EM3611T-G, 3 PH, 3 HP, 208-230/460 V, 1760 RPM, TEFC, 182T Frame

Baldor-Reliance HVAC Motor, EM3611T-G, 3 PH, 3 HP, 208-230/460 V, 1760 RPM, TEFC, 182T Frame

Baldor-Reliance Motor AOM3558T, 2HP, 1725RPM, 3PH, 60HZ, 145T, 3520M, TEAO, F1

Baldor-Reliance Motor AOM3558T, 2HP, 1725RPM, 3PH, 60HZ, 145T, 3520M, TEAO, F1

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Century H655V1, Fan and Blower Motor Three Phase 200-230 Volts 1725/1140RPM 1/2~22 HP

Century H655V1, Fan and Blower Motor Three Phase 200-230 Volts 1725/1140RPM 1/2~22 HP

Century F268, Split Phase Resilient Base Motor 100-115/200-230 Volts 1800 RPM 1/2 HP

Century F268, Split Phase Resilient Base Motor 100-115/200-230 Volts 1800 RPM 1/2 HP

Baldor-Reliance Motor, 3HP,1755RPM,3PH,60HZ,182T,3634M,OPSB,F1

Features:
  • Heavy gauge steel frame construction
  • Ball bearings
  • Grease reduced vibration
  • Suitable for mounting in any position
  • EHM models meet NEMA Premium® efficiency and inverter-ready
  • 3 year warranty
  • HM models meet EPAct efficiencies
Typical Applications:
Heating, ventilation and air conditioning fans and blowers

Product Details

  • Mounting Location Rigid
  • Number of Speeds 1
  • Rotation CCW/CW °
  • Poles 4
  • Ambient Temperature 40 °C
  • Drive End Flange Standard
  • Insulation Class F
  • RPM Range 1701-1800 rpm
  • Voltage 230/460 V
  • Frame 182T
  • Rated RPM 1760
  • Service Factor 1.15
  • Enclosure Type Open/Drip Proof
  • Horsepower 3 HP
  • Is_Motor Yes
  • Duty Continuous
  • Phase 3
  • Enclosure OPSB
  • Full Load Efficiency 89.5
  • Brand Baldor-Reliance
  • Bearing Type Ball
  • Full Load Amps 8.2/4.1 FLA
  • Design Code B
  • Motor RPM 60 Hertz 1760 rpm
  • Thermal Protection None
  • Hertz 60 Hz
  • Manufacturers Part Number EHM3211T

Weights & Dimensions

  • Width 11.75 in
  • Length 15 in
  • Height 11.75 in
  • Drive End Bearing Size 6311
  • Shaft Diameter 1.125 in
  • Frame Size 182T
  • Opposite End Bearing Size 6205
  • Length Less Shaft 16.5 in
  • Weight 72 lbs

Compliance & Certifications

  • Certifications CSA; UR
