Baldor-Reliance Motor EJPM2333T, 15HP, 1765RPM, 3PH, 60HZ, 254JP, 0936M, TEFC, F

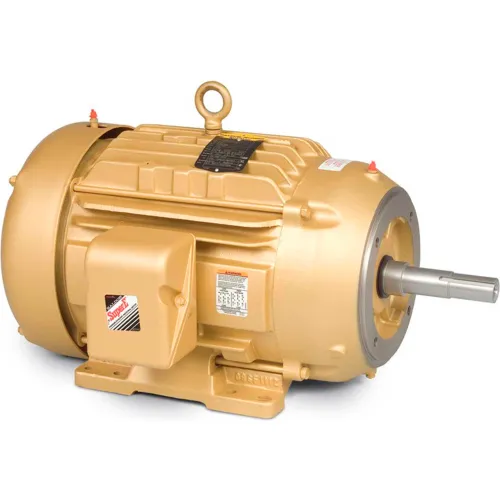

Actual product may differ from image shown

Baldor-Reliance Motor EJPM2333T, 15HP, 1765RPM, 3PH, 60HZ, 254JP, 0936M, TEFC, F

Item #: WBB390401

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$5,045.00 up to 39% OFF

Price: $3,076.00

$512.67/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor EJMM3710T, 7.5HP, 1770RPM, 3PH, 60HZ, 213JM, 3736M, TEFC

Baldor-Reliance Motor EJMM3710T, 7.5HP, 1770RPM, 3PH, 60HZ, 213JM, 3736M, TEFC

Stainless Steel Straight Leg Slotted Shim 260-Piece Full Kit w/ Box - Size B - Made In USA

Stainless Steel Straight Leg Slotted Shim 260-Piece Full Kit w/ Box - Size B - Made In USA

Baldor-Reliance Pump Motor, EJMM3615T, 3 Phase, 5 HP, 208-230/460 Volts, 1750 RPM, 60 HZ, tefc,184JM

Baldor-Reliance Pump Motor, EJMM3615T, 3 Phase, 5 HP, 208-230/460 Volts, 1750 RPM, 60 HZ, tefc,184JM

US Motors Pump, 1 HP, 3-Phase, 3450 RPM Motor, EE506

US Motors Pump, 1 HP, 3-Phase, 3450 RPM Motor, EE506

Marathon Motors Centrifugal Pump Motor, K223, 1.5HP, 208-230/460V, 3600RPM, 3PH, 56J FR, DP

Marathon Motors Centrifugal Pump Motor, K223, 1.5HP, 208-230/460V, 3600RPM, 3PH, 56J FR, DP

Baldor-Reliance Motor EJMM3219T, 7.5HP, 3500RPM, 3PH, 60HZ, 184JM, 3646M, OPSB

Baldor-Reliance Motor EJMM3219T, 7.5HP, 3500RPM, 3PH, 60HZ, 184JM, 3646M, OPSB

Baldor-Reliance Motor VL1309A, 1HP, 3450RPM, 1PH, 60HZ, 56C, 3428L, OPEN, F1, N

Baldor-Reliance Motor VL1309A, 1HP, 3450RPM, 1PH, 60HZ, 56C, 3428L, OPEN, F1, N

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Stainless Steel Straight Leg Slotted Shim 130-Piece Tool Crib Kit w/ Box - Size B - Made In USA

Stainless Steel Straight Leg Slotted Shim 130-Piece Tool Crib Kit w/ Box - Size B - Made In USA

Baldor-Reliance Motor, 15HP,1765RPM,3PH,60HZ,254JP,0936M,TEFC,F

Features:
  • Heavy gauge steel frames
  • Moisture resistant ISR® (Inverter Spike Resistant) copper windings
  • Over-sized ball bearings with locked drive end construction to minimize endplay
  • Low-loss electrical grade lamination steel
  • Open drip-proof, close coupled pump motors are furnished with rodent screens at both ends
Typical Applications:
Designed for a wide variety of applications for circulating and transferring fluids. Mounting designed to support pump unit.

Weights & Dimensions

  • Dimension C 28.04 in
  • Weight 255 lbs

Product Details

  • Power Factor 82
  • Mounting Location Rigid
  • Bearing Drive End 6309
  • RPM 1765 rpm
  • Poles 4
  • Drive End Flange C-Face
  • Ambient Temperature 40 °C
  • KVA Code H
  • Insulation Class F
  • RPM Range 1701-1800 rpm
  • Voltage 208-230/460 V
  • Bearing Opp Drive End 6208
  • Frame 254JP
  • Service Factor 1.15
  • Horsepower 15 HP
  • Enclosure Type Totally Enclosed
  • Is_Motor Yes
  • Enclosure TEFC
  • Phase 3
  • Amps @ 208V 38.9 A
  • Full Load Efficiency 92.4
  • Brand Baldor-Reliance
  • Full Load Amps 38.8-37/18.5 FLA
  • Design Code B
  • Motor RPM 60 Hertz 1765 rpm
  • Hertz 60 Hz
  • Manufacturers Part Number EJPM2333T
