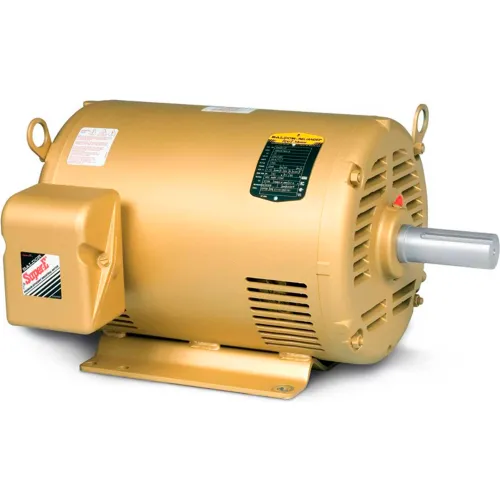

Baldor-Reliance Motor EM3218T, 5HP, 1750RPM, 3PH, 60HZ, 184T, 3639M, OPSB, F1

General Purpose, 3-Phase Motor: 5HP, 1760 RPM, Totally-Enclosed Fan-Cooled (TEFC) Enclosure, 184 Frame, Rigid Mount, 208-220/460V, 3PH, 60HZ, Name Plate Amps 14-13/6.5, Continuous duty, 1.15 Service Factor, No thermal protection, Efficiency: 87.5, Efficiency Type: Epact, Ambient 40 C, Reverse Rotation, Shaft Length 2-1/4, Shaft Diameter 1 1/8. Totally enclosed fan cooled (TEFC) enclosure has no vent openings, and is tightly enclosed to prevent the free exchange of air, but is not airtight. An external fan is an integral part of the motor and provides cooling by blowing air around the ...

Baldor-Reliance Motor, .5HP,1750RPM,DC,56C,3428P,TEFC,F1 Features: Moisture resistant 200°C magnet wire Sealed ball bearings with moisture resistant grease Contact lip seals on shaft extensions Neoprene gaskets Special processed endplates 300 series stainless steel motor frame, base, shaft and hardware No exterior paint Tropicalized Typical Applications: Food processing, packaging and other applications where the motor is regularly exposed to high pressure washdown with caustic solutions.

Baldor-Reliance Motor, ... Features: Heavy gauge steel frame construction Ball bearings Grease reduced vibration Suitable for mounting in any position EHM models meet NEMA Premium® efficiency and inverter-ready 3 year warranty HM models meet EPAct efficiencies Typical Applications: Heating, ventilation and air conditioning fans and blowers

Baldor-Reliance Motor, 3HP,1755RPM,3PH,60HZ,182T,3634M,OPSB,F2 Features: Heavy gauge steel frame construction Ball bearings Grease reduced vibration Suitable for mounting in any position EHM models meet NEMA Premium® efficiency and inverter-ready 3 year warranty HM models meet EPAct efficiencies Typical Applications: Heating, ventilation and air conditioning fans and blowers

Baldor-Reliance Motor, 60HP,1750RPM,3PH,N/AHZ,2168,DPG-FV, Features: Compact square laminated steel frame FL210-L440 (FL180 is extruded aluminum) for inverter duty and vector duty 1000:1 constant torque Premium class H insulation, 40 C ambient, 1.0 S.F. Three normally closed thermostats (one per phase) VPI insulation & insulated O.D.E. bearing is standard on all L440 frames Typical Applications: Extruders, conveyors, crane & hoist systems, converting, pumps, web processing, test stands, traction duty, winders, printing.
