Baldor-Reliance

Model # :WBB389271

MPN #: JPL1510T

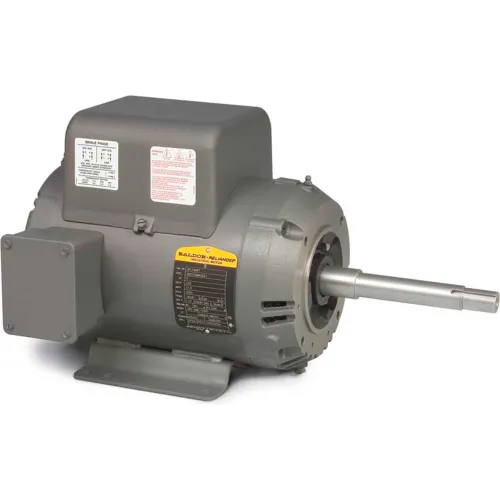

Baldor-Reliance Motor JPL1510T, 7.5HP, 1725RPM, 1PH, 60HZ, 215JP, 3744LC, OPEN

Product Description
Baldor-Reliance Motor, 7.5HP,1725RPM,1PH,60HZ,215JP,3744LC,OPEN

Features:
  • Heavy gauge steel frame construction
  • Corrosion resistant finish
  • Ball bearings
  • Suitable for mounting in any position
Typical Applications:
Many pumping systems where only single phase power is available.

PRICE
$2,899.00

1
1
Ships in 2 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Weight142 lbs
Dimension C23-3/16 in

Product Details

Power Factor89
Bearing Opp Drive End6206
Drive End FlangeC-Face
KVA CodeG
Motor RPM 60 Hertz1725 rpm
Mounting LocationRigid
Phase1
Manufacturers Part NumberJPL1510T
EnclosureOPEN
Service Factor1.15
Bearing Drive End6309
BrandBaldor-Reliance
RPM1,725 rpm
Insulation ClassB
Horsepower7-1/2 HP
Frame215JP
Hertz60 Hz
Design CodeL
Amps @ 208V33 A
Enclosure TypeOpen/Drip Proof
Voltage230 V
Full Load Efficiency85.5
Full Load Amps31 FLA
Poles4
Ambient Temperature40 °C
RPM Range1701-1800 rpm
