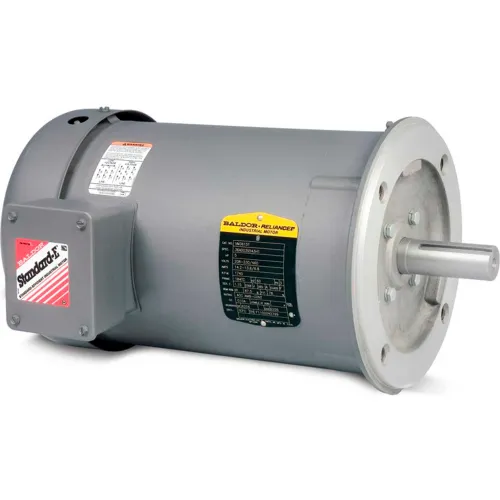

Baldor-Reliance Electric Motors KM3454, .25HP, 1725RPM, 3PH, 60HZ, 56C, 3410M, TEFC, F1

Actual product may differ from image shown

Baldor-Reliance Electric Motors KM3454, .25HP, 1725RPM, 3PH, 60HZ, 56C, 3410M, TEFC, F1

Item #: WBB389182

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$542.00 up to 38% OFF

Price: $337.95

Save $16.90 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Baldor-Reliance Motor VM3538, .5HP, 1725RPM, 3PH, 60HZ, 56C, 3416M, TEFC, F1

Baldor-Reliance Motor VM3538, .5HP, 1725RPM, 3PH, 60HZ, 56C, 3416M, TEFC, F1

Global Industrial™ Mobile Charging Cart for 12 Chromebooks and Tablets, Putty, Unassembled

Global Industrial™ Mobile Charging Cart for 12 Chromebooks and Tablets, Putty, Unassembled

WD-40® Specialist® Electrical Contact Cleaner Spray - 11 oz. Aerosol Can - 300080 - Pkg Qty 6

WD-40® Specialist® Electrical Contact Cleaner Spray - 11 oz. Aerosol Can - 300080 - Pkg Qty 6

Baldor-Reliance Motor M3452, .17HP, 1140RPM, 3PH, 60HZ, 48, 3408M, TEFC, F1

Baldor-Reliance Motor M3452, .17HP, 1140RPM, 3PH, 60HZ, 48, 3408M, TEFC, F1

Worldwide Electric Motor NAT12-18-56CB, GP, TEFC, REM-C, 3 PH, 56C, 1/2 HP, 1800 RPM, 1 FLA

Worldwide Electric Motor NAT12-18-56CB, GP, TEFC, REM-C, 3 PH, 56C, 1/2 HP, 1800 RPM, 1 FLA

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

US Motors Hostile Duty TEFC, 5 HP, 3-Phase, 1760 RPM Motor, HD5P2E

US Motors Hostile Duty TEFC, 5 HP, 3-Phase, 1760 RPM Motor, HD5P2E

Baldor-Reliance Motor, .25HP,1725RPM,3PH,60HZ,56C,3410M,TEFC,F1

Features:
  • Ball bearings
  • Locked drive end bearing
  • Heavy gauge steel frame
Typical Applications:
Pumps, fans, conveyors, machine tools, gear reducers.

Weights & Dimensions

  • Dimension C 11.35 in
  • Weight 19

Product Details

  • Power Factor 56
  • Mounting Location C-Face Footless
  • Bearing Drive End 6203
  • Poles 4
  • Drive End Flange C-Face
  • Nameplate RPM 1725 rpm
  • Ambient Temperature 40 °C
  • KVA Code L
  • Insulation Class B
  • RPM Range 1701-1800 rpm
  • Bearing Opp Drive End 6203
  • Voltage 230/460 V
  • Frame 56C
  • Service Factor 1.35
  • Horsepower 1/4 HP
  • Enclosure Type Totally Enclosed
  • Is_Motor Yes
  • Phase 3
  • Enclosure TEFC
  • Amps @ 208V 1.7 A
  • Full Load Efficiency 64
  • Brand Baldor-Reliance
  • Full Load Amps 1.3/.65 FLA
  • Design Code B
  • Motor RPM 60 Hertz 1725 rpm
  • Hertz 60 Hz
  • Manufacturers Part Number KM3454
