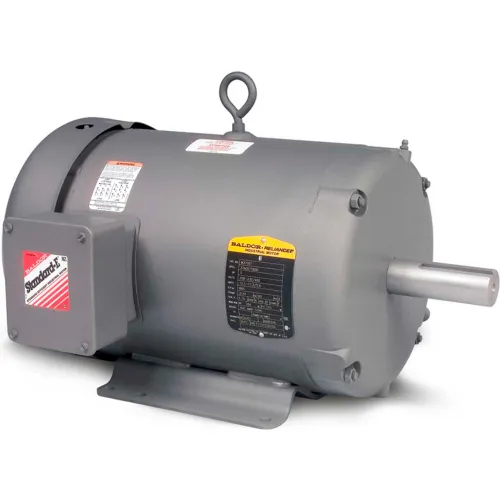

Baldor-Reliance Motor M3538, .5HP, 1725RPM, 3PH, 60HZ, 56, 3416M, TEFC, F1

Actual product may differ from image shown

Baldor-Reliance Motor M3538, .5HP, 1725RPM, 3PH, 60HZ, 56, 3416M, TEFC, F1

Item #: WBB391687

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$346.21 up to 26% OFF

Price: $254.95

Save $12.75 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, .5HP,1725RPM,3PH,60HZ,56,3416M,TEFC,F1

Features:
  • Ball bearings
  • Suitable for mounting any position
  • Heavy gauge steel and cast iron frames
Typical Applications:
Pumps, compressors, fans, conveyors, machine tools and other applications where three phase power is available.

  • HORSEPOWER 1/2
  • ENCLOSURE TEFC
  • FRAME 56
  • MOUNTING Rigid
  • NAMEPLATE RPM 1725
  • PHASE 3
  • MOTOR RPM 60Hz 1725
  • VOLTAGE 230/460
  • HERTZ 60
  • SERVICE FACTOR 1.25
  • AMBIENT TEMP C 40
  • WEIGHT 22
  • RPM RANGE 1701-1800
  • SPEC. NUMBER 34A61-872
  • POLES 4
  • C-DIMENSION INCHES 11.35
  • SERIAL-NUMBER --
  • DRIVE END FLANGE Standard
  • POWER-FACTOR 63
  • ENCLOSURE TYPE Totally Enclosed
  • is_motor Yes
  • DOE-CODE --
  • MANUFACTURER PART # M3538
  • BRAND Baldor-Reliance
  • 208V AMPS 2.5
  • KVA-CODE L
  • FL AMPS 2/1
  • INSULATION CLASS B
  • FL EFFICIENCY 74
  • BEARING-OPP-DRIVE-END 6203
  • BEARING-DRIVE-END 6203
  • DESIGN CODE B
