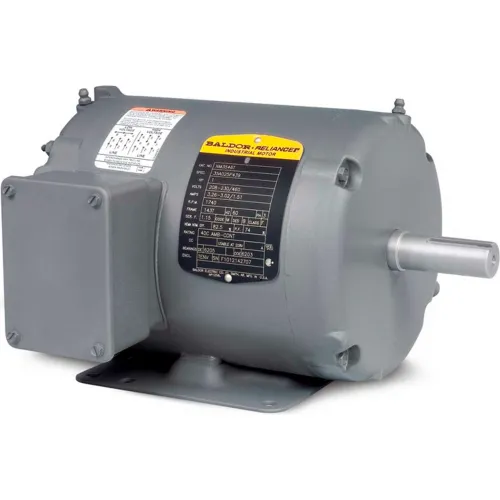

Baldor-Reliance Motor NM3542, .75HP, 1750RPM, 3PH, 60HZ, 56, 3514M, TENV, F1

Actual product may differ from image shown

Baldor-Reliance Motor NM3542, .75HP, 1750RPM, 3PH, 60HZ, 56, 3514M, TENV, F1

Item #: WBB390595

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$749.00 up to 38% OFF

Price: $466.95

Save $23.35 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Baldor-Reliance Motor VM3538, .5HP, 1725RPM, 3PH, 60HZ, 56C, 3416M, TEFC, F1

Baldor-Reliance Motor VM3538, .5HP, 1725RPM, 3PH, 60HZ, 56C, 3416M, TEFC, F1

WD-40® Specialist® Electrical Contact Cleaner Spray - 11 oz. Aerosol Can - 300080 - Pkg Qty 6

WD-40® Specialist® Electrical Contact Cleaner Spray - 11 oz. Aerosol Can - 300080 - Pkg Qty 6

Baldor-Reliance Motor M3452, .17HP, 1140RPM, 3PH, 60HZ, 48, 3408M, TEFC, F1

Baldor-Reliance Motor M3452, .17HP, 1140RPM, 3PH, 60HZ, 48, 3408M, TEFC, F1

Worldwide Electric Motor NAT12-18-56CB, GP, TEFC, REM-C, 3 PH, 56C, 1/2 HP, 1800 RPM, 1 FLA

Worldwide Electric Motor NAT12-18-56CB, GP, TEFC, REM-C, 3 PH, 56C, 1/2 HP, 1800 RPM, 1 FLA

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

US Motors Hostile Duty TEFC, 5 HP, 3-Phase, 1760 RPM Motor, HD5P2E

US Motors Hostile Duty TEFC, 5 HP, 3-Phase, 1760 RPM Motor, HD5P2E

Baldor-Reliance Motor, .75HP,1750RPM,3PH,60HZ,56,3514M,TENV,F1

Features:
  • Ball bearings
  • Suitable for mounting any position
  • Heavy gauge steel and cast iron frames
Typical Applications:
Pumps, compressors, fans, conveyors, machine tools and other applications where three phase power is available.

Weights & Dimensions

  • Dimension C 11.06 in
  • Weight 31

Product Details

  • Power Factor 66
  • Mounting Location Rigid
  • Bearing Drive End 6205
  • Poles 4
  • Drive End Flange Standard
  • Nameplate RPM 1750 rpm
  • Ambient Temperature 40 °C
  • KVA Code M
  • Insulation Class F
  • RPM Range 1701-1800 rpm
  • Bearing Opp Drive End 6203
  • Voltage 230/460 V
  • Frame 56
  • Service Factor 1.25
  • Horsepower 3/4 HP
  • Enclosure Type Totally Enclosed
  • Is_Motor Yes
  • Phase 3
  • Enclosure TENV
  • Amps @ 208V 3 A
  • Full Load Efficiency 78.5
  • Brand Baldor-Reliance
  • Full Load Amps 2.8/1.4 FLA
  • Design Code B
  • Motor RPM 60 Hertz 1750 rpm
  • Hertz 60 Hz
  • Manufacturers Part Number NM3542
