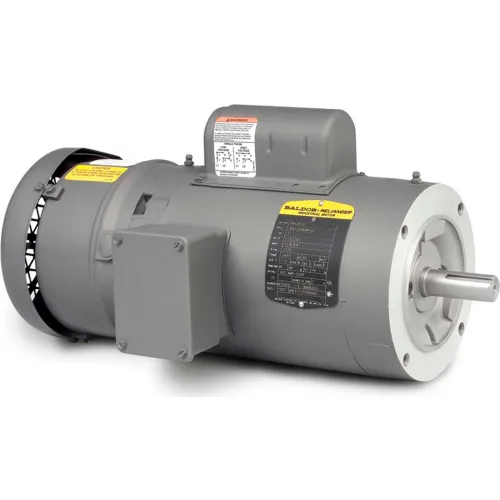

Actual product may differ from image shown
$2,587.00 up to 38% OFF
Price: $1,609.00
$268.17/mo
suggested payments with 6 month special financing OR Save 5%on Purchase.
Customers Also Viewed
Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black
Free Shipping
Baldor-Reliance Motor, 1HP,1725RPM,1PH,60HZ,56C,3524L,TEFC,F1,B
Features:
Machine tools, conveyors, door operators, speed reducers, any application requiring quick stop and hold.
Features:
- Spring set brake
- Power off operation manual release
- Resets automatically
- Brakes internally connected to motor on 215T and smaller
Machine tools, conveyors, door operators, speed reducers, any application requiring quick stop and hold.
Weights & Dimensions
- Dimension C 17.8 in
- Opposite End Bearing Size 6203
- Weight 48 lbs
Product Details
- Power Factor 74
- Mounting Location C-Face Footless
- Bearing Drive End 6205
- Brake Rating 6
- RPM 1725 rpm
- Poles 4
- Drive End Flange C-Face
- Ambient Temperature 40 °C
- KVA Code K
- Insulation Class F
- RPM Range 1701-1800 rpm
- Voltage 115/230 V
- Frame 56C
- Service Factor 1.15
- Horsepower 1 HP
- Enclosure Type Totally Enclosed
- Is_Motor Yes
- Enclosure TEFC
- Phase 1
- Amps @ 208V 7 A
- Full Load Efficiency 68
- Brand Baldor-Reliance
- Full Load Amps 12.8/6.4 FLA
- Design Code L
- Motor RPM 60 Hertz 1725 rpm
- Hertz 60 Hz
- Manufacturers Part Number VBL3510
