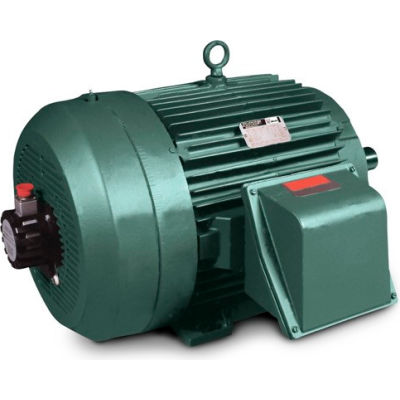

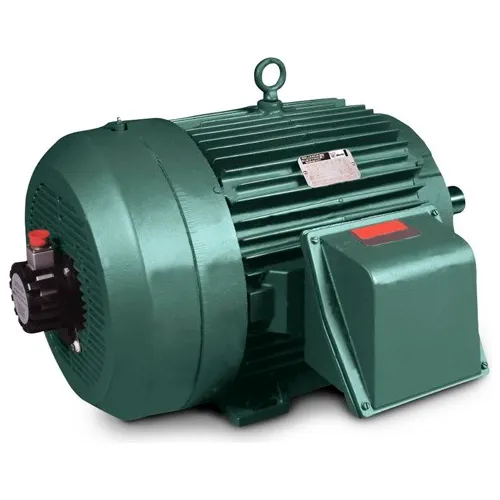

Baldor-Reliance Motor ZDVSNM3538, .5HP, 1750RPM, 3PH, 60HZ, 56C, 3516M, TENV, F1

Baldor-Reliance Motor ZDVSNM3538, .5HP, 1750RPM, 3PH, 60HZ, 56C, 3516M, TENV, F1

Item #: WBB392033

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$3,272.00 up to 32% OFF

Price: $2,230.00

$371.67/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor IDNM3542, .75HP, 1750RPM, 3PH, 60HZ, 56C, 3514M, TENV, F1

Baldor-Reliance Motor IDNM3542, .75HP, 1750RPM, 3PH, 60HZ, 56C, 3514M, TENV, F1

Baldor-Reliance Motor IDNM3534, .33HP, 1725RPM, 3PH, 60HZ, 56C, 3513M, TENV, F1

Baldor-Reliance Motor IDNM3534, .33HP, 1725RPM, 3PH, 60HZ, 56C, 3513M, TENV, F1

Marathon Motors Inverter Duty Motor, Y536, 143THTR5326, 1HP, 230/460V, 1800RPM, 3PH, 143TC, TENV

Marathon Motors Inverter Duty Motor, Y536, 143THTR5326, 1HP, 230/460V, 1800RPM, 3PH, 143TC, TENV

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Baldor-Reliance Motor, .5HP,1750RPM,3PH,60HZ,56C,3516M,TENV,F1

Features:
  • Designed specifically for Inverter operation where up to 1000:1 constant torque speed range is required
  • Includes provisions for stub shaft for hollow shaft encoder, three thermostats, and all 440T frames include an ODE insulated bearing
  • Insulation system exceeds NEMA MG 1-2006, Part 31.4.4.2
  • Continuous constant torque to zero speed
Typical Applications:
Conveyors, extruders, printing lines, converting, test stands, anywhere constant torque is required over a wide speed range.

Weights & Dimensions

  • Dimension C 13.84 in
  • Opposite End Bearing Size 6203
  • Weight 37 lbs

Product Details

  • Mounting Location Rigid
  • Bearing Drive End 6205
  • RPM 1765 rpm
  • Poles 4
  • Drive End Flange C-Face
  • Ambient Temperature 40 °C
  • Insulation Class H
  • RPM Range 1701-1800 rpm
  • Voltage 230/460 V
  • Frame 56C
  • Service Factor 1
  • Horsepower 1/2 HP
  • Enclosure Type Totally Enclosed
  • Is_Motor Yes
  • Enclosure TENV
  • Phase 3
  • Slip Hertz 1.2 Hz
  • Magnetizing Current 1.4/.7 A
  • Full Load Efficiency 84
  • Brand Baldor-Reliance
  • Full Load Amps 1.8/.9 FLA
  • Design Code B
  • Motor RPM 60 Hertz 1765 rpm
  • Hertz 60 Hz
  • Max RPM 6000 rpm
  • Rotor-Inertia 0.0946
