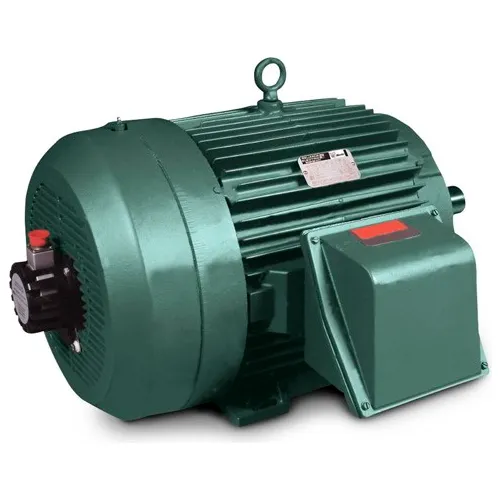

Baldor-Reliance Motor ZDVSNM3661T, 3HP, 1800RPM, 3PH, 60HZ, 182TC, TENV, FOOT

Baldor-Reliance Motor, 10HP,1775RPM,3PH,60HZ,254TC,TENV,FOOT, Features: Designed specifically for Inverter operation where up to 1000:1 constant torque speed range is required Includes provisions for stub shaft for hollow shaft encoder, three thermostats, and all 440T frames include an ODE insulated bearing Insulation system exceeds NEMA MG 1-2006, Part 31.4.4.2 Continuous constant torque to zero speed Typical Applications: Conveyors, extruders, printing lines, converting, test stands, anywhere constant torque is required over a wide speed range.

Baldor-Reliance Motor, 250HP,1800RPM,3PH,60HZ,449T,TEFC,FOOT, Features: Designed specifically for Inverter operation where up to 1000:1 constant torque speed range is required Includes provisions for stub shaft for hollow shaft encoder, three thermostats, and all 440T frames include an ODE insulated bearing Insulation system exceeds NEMA MG 1-2006, Part 31.4.4.2 Continuous constant torque to zero speed Typical Applications: Conveyors, extruders, printing lines, converting, test stands, anywhere constant torque is required over a wide speed range.

Baldor-Reliance Motor, 25HP,1800RPM,3PH,60HZ,1852C,TEBC,FOOT, Features: Above premium efficient design utilizing salient pole PM rotor technology to achieve high efficiency, low FLA and optimized power factor Synchronous speed performance in a compact square frame design FL180 aluminum and FL210-280 laminated steel frame design Continuous constant torque from base speed down to zero speed 1000:1 turn down Premium class H insulation Typical Applications: Extruders, conveyors, crane & hoist systems, converting, pumps, web processing, test stands, traction duty, winders, printing.

Baldor-Reliance Motor, 7.5HP,1750RPM,3PH,60HZ,1852C,TENV,FOOT Features: Compact square laminated steel frame FL210-L440 (FL180 is extruded aluminum) for vector duty 1000:1 constant torque Premium class H insulation, 40 C ambient, 1.0 S.F. Three normally closed thermostats (one per phase) VPI insulation & insulated O.D.E. bearing is standard on all L440 frames Includes 1024 ppr hollow shaft encoder with MS twist lock connector Typical Applications: Test stands, extruders, conveyors, crane & hoist systems, converting, web processing, traction duty, winders, printing.

Baldor-Reliance Motor, 30HP,1800RPM,3PH,60HZ,286TC,TEFC,FOOT, Features: Designed specifically for Inverter operation where up to 1000:1 constant torque speed range is required Includes provisions for stub shaft for hollow shaft encoder, three thermostats, and all 440T frames include an ODE insulated bearing Insulation system exceeds NEMA MG 1-2006, Part 31.4.4.2 Continuous constant torque to zero speed Typical Applications: Conveyors, extruders, printing lines, converting, test stands, anywhere constant torque is required over a wide speed range.
