Big Joe® FULLY POWERED COUNTERBALANCED STACKER
Counterbalanced Lift Truck is designed for applications where extended straddle legs or outriggers will interfere with loading or unloading.
Operator can easily approach mezzanines and racks with lower braces. Perfect for loading and unloading shipping containers or trucks since there are no stabilization legs to get in the way. Tight 56" turning radius eases maneuverability in confined aisles. 2.2KW lift motor raises loads 25 ft./min. and travels via 0.9KW AC drive motor at 3.1 mph loaded and 3.4 mph unloaded. 42"L x 4"W x 1-½" forks offer 24" load center and adjust from 8" to 28" O.D. Includes (4) 6V 224Ah maintenance-free batteries, battery discharge gauge and integral 25 amp 110V charger. Ergonomic handle controls speed and lift with left or right hand, and offers auto-reverse safety belly button switch. 2 Year Limited Warranty.
Dock required for Delivery.
Counterbalanced Lift Truck is designed for applications where extended straddle legs or outriggers will interfere with loading or unloading.
Operator can easily approach mezzanines and racks with lower braces. Perfect for loading and unloading shipping containers or trucks since there are no stabilization legs to get in the way. Tight 56" turning radius eases maneuverability in confined aisles. 2.2KW lift motor raises loads 25 ft./min. and travels via 0.9KW AC drive motor at 3.1 mph loaded and 3.4 mph unloaded. 42"L x 4"W x 1-½" forks offer 24" load center and adjust from 8" to 28" O.D. Includes (4) 6V 224Ah maintenance-free batteries, battery discharge gauge and integral 25 amp 110V charger. Ergonomic handle controls speed and lift with left or right hand, and offers auto-reverse safety belly button switch. 2 Year Limited Warranty.
Dock required for Delivery.
Weights & Dimensions
- Wheel Diameter 9 Front, 8 Rear in
- Width 35-13/16 in
- Length 106 in
- Overall Fork Width 8 to 28 (adjustable) in
- Fork Width 4 in
- Travel Speed 3.1 Loaded; 3.4 Unloaded mph
- Height 72-5/16 in
- Lowered Height 2 in
- Fork Length 42 in
- Load Center 24 in
- Lift Speed 25 ft/min
- Weight Capacity 2,200 lbs
- Raised Height 104 in
- Weight 4455 lbs
Product Details
- Drive Motor 0.9 KW kW
- Assembly Required Assembled
- Charger 25 amp / 110V
- Type Counter Balanced
- Material Steel
- Wheel Type Polyurethane
- Lift Motor 2.2 KW
- Batteries (4) 6V / 224AH
- Duty Cycle per Charge 4 - 6 Hours Intermittent Use (Approx. 75 Pallet Moves)
- Brand Big Joe
- Power Battery Operated
- Manufacturers Part Number CB22-104
- Color Family Yellow
Warranty
- Warranty 2 yr
⚌
Photo/Video Gallery
-

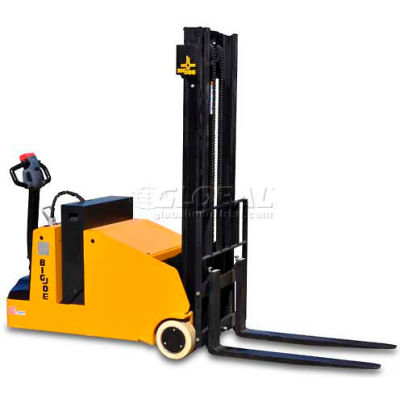

Big Joe® CB22 Fully Powered Counterbalanced Lift Truck
-
-
-
