Price: $3,618.00
Customers Also Viewed

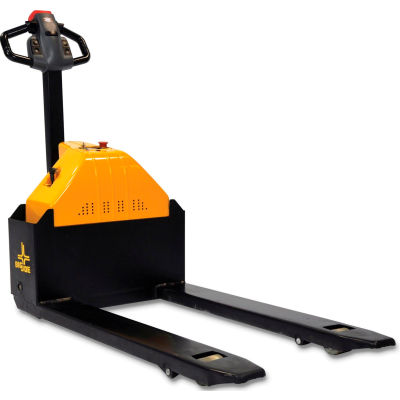

For over 60 years, Big Joe® has been known as a leader and innovator in electric lift trucks. Its power-propelled E-30 pallet truck won an international Red Dot design award for innovation and has received 4 patents from the United States Patent Office. It is the most compact, fully-electric pallet jack on the market and is ideal for use in confined spaces such as the back of trailers and in narrow aisles or small warehouses. 24V DC high-torque drive and lift motors. Multi-function handle allows operation with either hand and features thumb throttle, lift/lower controls, safety reversing switch and horn. Maintenance free batteries and an onboard smart charger allow for easy charging in standard 120V wall outlets. Automatic dead-man emergency brake cuts power when handle is released. Includes battery discharge indicator LED and key switch. Rolls smoothly on polyurethane drive and load wheels. Features 27"W x 45"L forks, 3" lowered fork height and 7" raised height. 3,000lb capacity model has 0.6KW drive and 0.8KW lift motors. 2 Year Limited Warranty.
Weights & Dimensions
- Width 27 in
- Turning Radius 52-11/16 in
- Fork Width 6 in
- Travel Speed 2.0 Loaded; 2.1 Unloaded mph
- Lowered Height 3 in
- Fork Length 45 in
- Weight Capacity 3,000 lbs
- Raised Height 7 in
Product Details
- Operation Electric
- Assembly Required Assembled
- Type Self Propelled
- Charger External 8 amp 120V
- Material Steel
- Style Standard Forks
- Batteries (2) 12 Volt / 65AH
- Duty Cycle per Charge 4 Hours
- Brand Big Joe
- Manufacturers Part Number E30-65AH
- Color Family Yellow
Warranty
- Warranty 2 yr
-
BigJoe Pallet Trucks
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Most Recent Reviews
- Most Recent Reviews
- Highest Rated Reviews
- Lowest Rated Reviews
-
Reviewer: ALEXANDER
Date: January 11, 2022
-
Reviewer: WALT
Date: May 16, 2020
Your review:
Working great! Our staff loves it. -
Reviewer: Anonymous
Date: November 15, 2018
Your review:
We only had this one week but so far it has been great. Rolls Smooth and has plenty of power -
Reviewer: Anonymous
Date: November 19, 2015
Your review:
Very quick, Nice piece of equipment. -
Reviewer: Anonymous
Date: January 26, 2015
Your review:
D-Check modifies the unit for special commercial purposes and it works well in our application. -
Reviewer: Anonymous
Date: November 17, 2014
Your review:
Excellent find. -
Reviewer: Anonymous
Date: October 29, 2013
Your review:
Excellent Product. -
Reviewer: Anonymous
Date: October 23, 2013
Your review:
Perfect lift for trailers. 3rd Big Joe purchases -
Reviewer: Anonymous
Date: February 03, 2012
Your review:
Good lift for the money so far. Only one problem and that is with the key placement. Anything falling off the pallet, which happens daily will land on the key and E-stop. The E-stop placement is not bad since your going to be stopping to replace the fallen item anyway. The key simply breaks off. Still works, just using the E-stop to shut off now. If it were relocated to a guarded area, would be better. Other than that issue, it is a very nice jack, heavy duty, lots of power and the battery will run it several days of use on inclined floors. So far, very pleased.
There are 3 questions and 3 answers for this product.
-
Outside fork dimensions are 27" Is this truck or any of your electric lifts have 20.5" (or close) as an option
Question Asked By: Mark, January 18, 2019
Answer This Question
Question Answered By:
-
anonymous
Hello Mark, we do offer a few models that meet your requirement. Please see the link: https://www.globalindustrial.com/g/material-handling/pallet-trucks-jacks/self-propelled/self-propelled-power-pallet-trucks. Click the W" filter (for fork width), choose the drop down = 20, 20-1/2 or 22 and our options will display. A special order is also an option via our sales team at 1.888.978.7759. Thank you for your interest in our product.
-
-
What is the exact distance between the forks (inside measurement)?
Question Asked By: Jennifer, October 26, 2017
Answer This Question
Question Answered By:
-
anonymous
15"
-
-
Can you tell me the total lenght
Question Asked By: Kelvin, April 03, 2015
Answer This Question
Question Answered By:
-
Product Expert, April 03, 2015
The length of the total truck is 63.8".
-
