Pallet Loading and Unloading time can be reduced by 40%, substantially increasing Productivity.

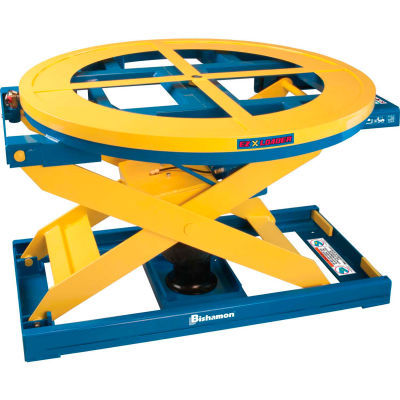

Bishamon® Self-Leveling Carousel improves efficiency and helps reduce injury by bringing the level and location of the load closer to the person doing the work. As layers of product are added or removed, a captive reinforced rubber airbag assures the work remains at an ergonomic height. Totally self-contained and does not require a constant air source (requires initial air pressure of 60 psi). The 43" diameter Rotator Ring, with a secured ball bearing center pivot, provides smooth even rotation, eliminating reaching and stretching. Ring also features an integral finger guard to protect the operator. Rollers are entrapped in the base frame and platform for added stability. Pallet Carousel includes a built-in air gauge, an air pressure relief valve, and maintenance bars to ensure safe routine inspection. Skid Positioner is easily transported throughout the workplace using a forklift truck. Initial load and subsequent loads are height adjustable via air pressure. Durable steel construction with a phosphatized powder coat finish. CE marked under Machinery Directive (2006/42/EC). Shipped fully assembled. 1 Year Limited Warranty.
Weights & Dimensions
- Width 24 in
- Length 48-1/2 in
- Max Weight Capacity 4000 lbs
- Carousel Outside Diameter 43 in
- Raised Height 29-13/16 in
- Min Weight Capacity 400 lbs
- Weight 500 lbs
- Lowered Height 9-13/16 in
Product Details
- Operation Manual
- Assembly Required No
- Type Self Leveling Pallet Carousel Positioner
- Lift Type Air Powered Pneumatic
- Brand Bishamon
- Material Steel
- Control Hand Operated
- Manufacturers Part Number EZ X Loader
- Color Family Yellow
Warranty
- Warranty 1 yr
There are 2 questions and 2 answers for this product.
-
Does the manufacturer require this to be bolted to the floor?
Question Asked By: Bill, April 06, 2021
Answer This Question
Question Answered By:
-
Product Expert, April 16, 2021
Hello, this is not required to be bolted. Thank you for your interest in our products.
-
-
Is the initial load height adjustable? If so, how? Via air pressure or some mechanical adjustment?
Question Asked By: Rob, February 04, 2019
Answer This Question
Question Answered By:
-
anonymous
Hello Rob, the initial load and subsequent loads are height adjustable via air pressure. Thank you for your questions.
-
