Marathon's line of brake motors are available in totally enclosed fan cooled, open drip proof, or explosion proof designs, in either Single or Three Phase.

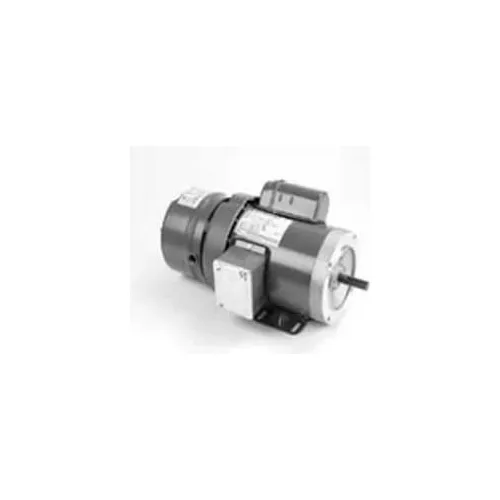

Marathon Motors Brakemotor, D452, 56T17F5349, 1/2HP, 208-230/460V, 1800RPM, 56C FR, 3PH, TEFC
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$1,129.00
1
1
Ships in 4 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Weight | 30 lbs |
| Opposite End Bearing Size | 6203 |
| Drive End Bearing Size | 6203 |
Product Details
| Catalog Number | D452 |
| 50 Hertz Horsepower | 1/3 HP |
| 50 Hertz SF | 1.15 |
| KVA Code | M |
| Motor RPM 50 Hertz | 1500 rpm |
| IP Code | 43 |
| Motor RPM 60 Hertz | 1800 rpm |
| 50 Hertz Voltage | 190/380 V |
| 50 Hertz FLE | 67.00 Percent FLE |
| Mounting Location | C-Face Removable Base |
| Kilowatts | 0.37 kW |
| Phase | 3 |
| Manufacturers Part Number | D452 |
| Enclosure | TEFC |
| 50 Hertz Full Load Amps | 2.2/1.1 FLA |
| Service Factor | 1.15 |
| Bearing Drive End | 6203 |
| Brand | Marathon Motors |
| 50 Hertz Kilowatts | 0.25 kW |
| RPM | 1800/1500 rpm |
| Insulation Class | B |
| Horsepower | 1/2 HP |
| Orientation | Horizontal |
| Frame | 56C |
| Starting Type | Across the Line |
| Enclosure Type | Totally Enclosed |
| Voltage | 208-230/460 V |
| Full Load Efficiency | 72 |
| Full Load Amps | 2.3-2.4/1.2 FLA |
| Duty | Continuous |
| Ambient Temperature | 40 °C |
| RPM Range | 1701-1800 rpm |
Compliance & Certifications
| CSA Certified | Y |
| CE Approved | Y |
| NEMA Design | B |
| UL | Recognized Construction |
