Marathon Motors Severe Duty Motor, W560, 284THFNA9026, 25HP, 460V, 1800RPM, 3PH, 284T FR, TEFC

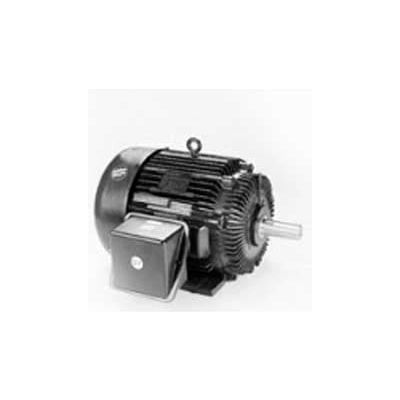

Actual product may differ from image shown

Marathon Motors Severe Duty Motor, W560, 284THFNA9026, 25HP, 460V, 1800RPM, 3PH, 284T FR, TEFC

Item #: WBB870105

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $2,072.00

$345.33/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Marathon Motors Severe Duty Motor, W560, 284THFNA9026, 25HP, 460V, 1800RPM, 3PH, 284T FR, TEFC

Marathon's 1800 Rpm, line of Severe Duty Neman Premium XRI Duty IEEE-841 Hazardous Duty Motor are available in TEFC construction. Horsepower sizes available from stock range from 1 HP through 350 HP.

  • HORSEPOWER 25
  • ENCLOSURE TEFC
  • FRAME 284T
  • BRAND Marathon Motors
  • MOUNTING Rigid
  • MOTOR RPM 60Hz 1800
  • RPM 1800
  • PHASE 3
  • VOLTAGE 460
  • SERVICE FACTOR 1.15
  • AMBIENT TEMP C 40
  • ENCLOSURE TYPE Totally Enclosed
  • OPPOSITE END BEARING 6210
  • WEIGHT 489
  • UL Recognized Construction
  • CSA Y
  • DUTY Continuous
  • MANUFACTURERS PART NUMBER W560
  • RPM RANGE 1701-1800
  • INSULATION CLASS F
  • HAZARDOUS LOCATION DIVISION 2 T2B
  • INVERTER SPEED RANGE Constant 20:1
  • FL AMPS 31
  • OPPOSITE END BEARING SIZE 6210
  • DRIVE END BEARING SIZE 6311
  • ASSEMBLY F1 (F2 Modification Available)
  • ORIENTATION Horizontal
  • BEARING-DRIVE-END 6311
  • IP CODE 56
  • STARTING TYPE Line or Inverter
  • NEMA DESIGN B
  • CE Y
  • FL EFFICIENCY 93.6
  • is_motor Yes
  • KVA-CODE G
  • 60 HERTZ kW 18.7
  • 60 HERTZ RPMS 1800
  • MODEL NUMBER 284THFNA9026
