Marathon Motors, C225A, 213TTFW14045, 7 1/2HP, 1800RPM, 208-230/460V, 3PH, 213TC

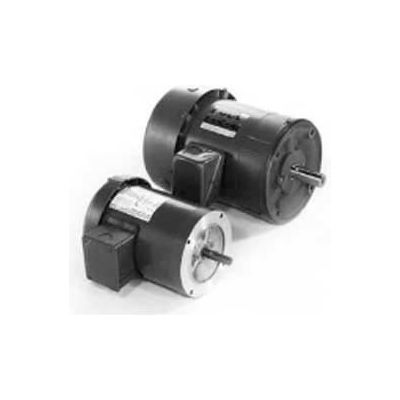

Actual product may differ from image shown

Marathon Motors, C225A, 213TTFW14045, 7 1/2HP, 1800RPM, 208-230/460V, 3PH, 213TC

Item #: WBB870997

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $598.00

$99.67/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Marathon Motors, C225A, 213TTFW14045, 7 1/2-5HP, 1800RPM, 208-230/460V, 3PH, 213TC FR, TEFC

Marathon's Three Phase extensive line of General Purpose motors are available in ODP and TEFC construction, Foot Mounted and Footless. Horsepower sizes available from stock range from 1/12 HP through 1500 HP.

  • HORSEPOWER 7 1/2
  • ENCLOSURE TEFC
  • FRAME 213TC
  • MOUNTING C-Face Footless
  • NAMEPLATE RPM 1800
  • PHASE 3
  • MOTOR RPM 60Hz 1800
  • VOLTAGE 230/460
  • HERTZ 60
  • DUTY Continuous
  • SERVICE FACTOR 1.15
  • AMBIENT TEMP C 40
  • WEIGHT 120
  • UL Recognized Construction
  • CSA Y
  • RPM RANGE 1701-1800
  • ENCLOSURE TYPE Totally Enclosed
  • IP CODE 43
  • is_motor Yes
  • ORIENTATION Horizontal
  • MANUFACTURER PART # C225A
  • 50 Hertz SF 1.15
  • BRAND Marathon Motors
  • 50 HERTZ FL AMPS 17/8.5
  • 50 HERTZ VOLTAGE 190/380
  • STARTING TYPE Across The Line
  • OPPOSITE END BEARING SIZE 6206
  • DRIVE END BEARING SIZE 6309
  • NEMA DESIGN B
  • APPROVAL-CE Y
  • ASSEMBLY F1 (F2 Modification Available)
  • 50 Hertz FL eFF 89.5 Percent
  • 50 HERTZ RPM 1500
  • KVA-CODE H
  • 50 Hertz kW 3.7
  • 50 Hertz HP 5
  • FL AMPS 20/10
  • INSULATION CLASS F
  • FL EFFICIENCY 89.5 Percent
  • BEARING-OPP-DRIVE-END 6206
  • BEARING-DRIVE-END 6309
  • 60 HERTZ kW 5.6
  • MODEL NUMBER 213TTFW14045
