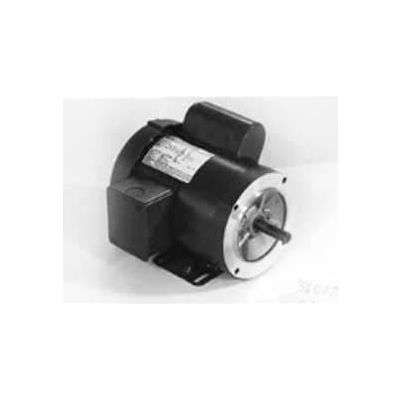

Marathon Motors, C376, 5KC49TN0067, 1HP, 1725RPM, 115/208-230V, 1PH, 56C FR, TEFC
Marathon's Single Phase extensive line of General Purpose motors are available in ODP and TEFC construction, Foot Mounted and Footless. Horsepower sizes available from stock range from 1/12 HP through 15 HP.
Marathon's Single Phase extensive line of General Purpose motors are available in ODP and TEFC construction, Foot Mounted and Footless. Horsepower sizes available from stock range from 1/12 HP through 15 HP.
Weights & Dimensions
- Drive End Bearing Size 6203
- Opposite End Bearing Size 6203
- Weight 38
Product Details
- Mounting Location C-Face Rigid
- Bearing Drive End 6203
- Rotation CCW °
- Ambient Temperature 40 °C
- Nameplate RPM 1725 rpm
- KVA Code K
- Insulation Class B
- RPM Range 1701-1800 rpm
- Bearing Opp Drive End 6203
- Voltage 115/208-230 V
- Frame 56C
- Service Factor 1
- Horsepower 1 HP
- Enclosure Type Totally Enclosed
- Is_Motor Yes
- Duty Continuous
- Phase 1
- Enclosure TEFC
- Orientation Horizontal or Vertical
- Starting Type Switch and Mech
- Brand Marathon Motors
- Full Load Amps 13.2/6.7-6.6 FLA
- Motor RPM 60 Hertz 1725 rpm
- Manufacturers Part Number C376
Compliance & Certifications
- CSA Certified Y
- UL Y
