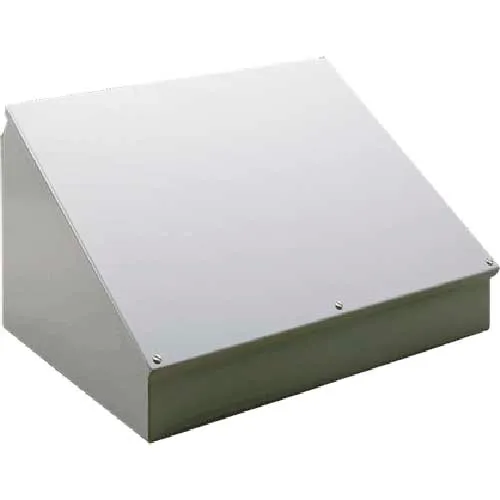

Hoffman C8C12SS, Consolet, Sloped Cover, Type 12, 8.00x12.00x7.09in
Enclosure is available in three heights 400, 500 and 700 mm. Full-front opening for door/cover options has a 5-degree slope. Rear opening(s) for door and cover options. Optional PROLINE™ Frame Shelf or PROLINE Grid System is recommended to provide a stationary platform for supporting deep equipment. The open bottom is suitable for joining the top to a 700-mm-tall PROLINE frame. The bottom of the 600 x 600-mm sizes can be joined through a cutout base to a pedestal or pendant arm system. A support bracket accessory allows the 600 x 600-mm sizes to be suspended from an overhanging pendant arm. Sloped-front enclosures are Type 304 stainless steel or 14 gauge steel with a RAL 7035 light-gray textured polyester powder paint finish.
Share
Spec Sheet
Hoffman C8C12SS, Consolet, Sloped Cover, Type 12, 8.00x12.00x7.09in
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$1,115.00
1
1
Ships in 7 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Specifications
Weights & Dimensions
| A x B x C | 8 x 12 x 7-1/16 in |
Product Details
| Type | 12 |
| Material | 304 Stainless Steel |
| Description | Consolet |
| Color | Gray |
| Manufacturers Part Number | C8C12SS |
| Brand | Hoffman |
