The lightweight CALM Series feature a hardened worm shaft for increased durability, two bearings on all input and output shafts for reliable performance, and multiple mounting holes for all angle mounts.
Features:

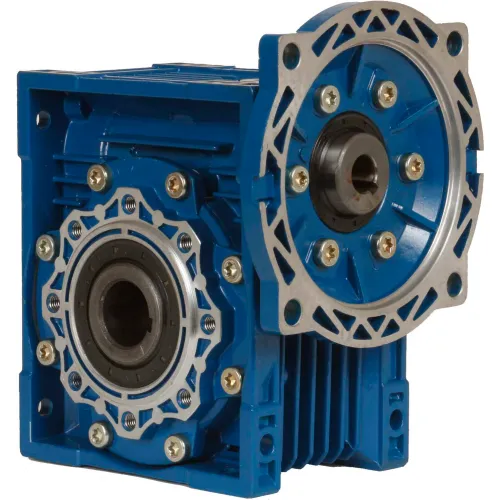

Worldwide Electric Aluminum Worm Gear Reducer, Box Size 50, 100:1 Ratio, 56C Frame
Write a Review
|
Questions & Answers (0)
Product Description
Worldwide Electric's manufactures CALM Series Aluminum Worm Gear Reducers. They are a durable, lightweight, right angle, worm gear reducer with a wide variety of NEMA and IEC Metric input flange options and hollow output bore sizes that ensure compatibility with many applications.
The lightweight CALM Series feature a hardened worm shaft for increased durability, two bearings on all input and output shafts for reliable performance, and multiple mounting holes for all angle mounts.
Features:
Housing: One-piece cast aluminum alloy One-piece aluminum alloy housing for lightweight strength Hardened worm shaft for increased durability Two bearings on input and output shafts NEMA or IEC Metric motor input flanges All units filled with synthetic oil (Mobil SHC632) for an M1 position mounting. Adjust oil level for alternative mounting positions Double lip oil seals prevent leakage Multiple mounting holes for all angle mounts Powder coat paint plan on external housing to resist corrosion Hollow output bores with plug-in output shafts One-year warranty
The lightweight CALM Series feature a hardened worm shaft for increased durability, two bearings on all input and output shafts for reliable performance, and multiple mounting holes for all angle mounts.
Features:
PRICE
$415.95
1
1
Ships within 1 Business Day
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Gear Ratio | 100:1 |
| Max Torque | 487 lb-in |
| Overhung Load | 866 lbs |
| Box Size | 50 |
| Output Diameter | 1 in |
| WCD Center | 50 in |
Product Details
| Efficiency | 46 |
| Max Input Horsepower | 0.28 HP |
| Output Speed | 18 rpm |
| Manufacturers Part Number | CALM50-100/1-56C |
| Bore Type | Hollow Bore |
| Brand | Worldwide Electric Corporation |
Warranty
| Warranty | 1 |
Compliance & Certifications
| NEMA Frame | 56C |
