Aluminum Worm Gear Reducers are available in box sizes 30 - 90mm in ratio's from 7.5:1 to 100:1. The units have an aluminum alloy housing, NEMA motor input flanges, come pre-filled with synthetic oil and have a 1 year warranty. Special features include two bearings on the input and output shafts, double lip oil seals, epoxy paint for rust prevention, and hollow output bores with plug-in output shafts.

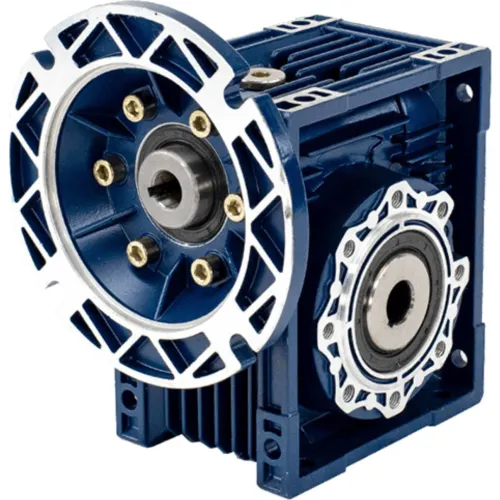

Worldwide Electric CALM75-15/1-145TC Aluminum Worm Gear Reducer, 75mm, 15:1, 145TC NEMA Frame
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$709.00
1
1
Ships within 1 Business Day
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Gear Ratio | 15:1 |
| Max Torque | 1770 lb-in |
| Overhung Load | 691 lbs |
| Box Size | 75 |
| Output Diameter | 1.25 in |
| WCD Center | 75 in |
Product Details
| Efficiency | 84 |
| Max Input Horsepower | 3.886 HP |
| Output Speed | 117 rpm |
| Manufacturers Part Number | CALM75-15/1-145TC |
| Bore Type | Hollow Bore |
| Brand | Worldwide Electric Corporation |
Compliance & Certifications
| NEMA Frame | 145TC |
