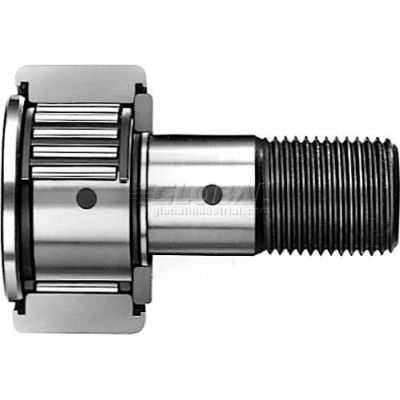

IKO Eccentric Cam Follower-METRIC, Eccentric Stud, Caged, Hex Hole, Double Sealed, 40mm OD, 20mm Width, M18 x 1.5 Thread
IKO Cam Followers consist of needle rollers, stud acting inner ring raceway and thick-walled outer ring to withstand heavy rolling or shock loads. Cam Followers are available with cylindrical or crowned outer rings. The crowned outer ring alleviates uneven loads resulting from deflection, bending or misalignment in mounting. Cam Followers are follower bearings for cam mechanisms or linear motions, and widely used for machine tools, industrial robots, electronic devices and office automation equipment utilizing their high rigidity and accuracy. Stud of this Cam Follower is eccentric to the stud that makes outer ring positioning easier in radial direction against mating track surface. Refer to the main page which item comes with prepacked grease. In case grease is not prepacked as indicated in the main page, lubricant must be provided through the oil hole. Sufficient lubrication is also needed between cam followers and steel track on which cam followers run, to prevent seizure and to reduce friction. An appropriate nut is supplied with the stud.
IKO Cam Followers consist of needle rollers, stud acting inner ring raceway and thick-walled outer ring to withstand heavy rolling or shock loads. Cam Followers are available with cylindrical or crowned outer rings. The crowned outer ring alleviates uneven loads resulting from deflection, bending or misalignment in mounting. Cam Followers are follower bearings for cam mechanisms or linear motions, and widely used for machine tools, industrial robots, electronic devices and office automation equipment utilizing their high rigidity and accuracy. Stud of this Cam Follower is eccentric to the stud that makes outer ring positioning easier in radial direction against mating track surface. Refer to the main page which item comes with prepacked grease. In case grease is not prepacked as indicated in the main page, lubricant must be provided through the oil hole. Sufficient lubrication is also needed between cam followers and steel track on which cam followers run, to prevent seizure and to reduce friction. An appropriate nut is supplied with the stud.
Weights & Dimensions
- Dimension C1 0.8mm in
- Stud Diameter (D1) 18
- Width (C) 20
- Dimension B3 8mm
- Dimension H 8mm
- Tolerance For Mounting Hole +0.018 / -0
- Eccentricity 0.6 mm
- Tolerance For Stud Diameter +0 / -0.018 mm
- Clamping Diameter (F) Minimum 29
- Corner Radius (R) 1 in
- Outside Dimension Tolerance +0 / -0.011 mm
- Outside Dimension (D) 40
- Static Load Rating 25200 N
- Width (C) Tolerance +0 / -0.120
- Max Torque 86.2 lb-in
- Dimension B2 36.5mm
- Dimension G2 3mm
- Dimension B 21.6 mm max
- Dimension G1 19mm
- Dimension B1 58.1mm max
Product Details
- Prepacked Grease Yes
- Temperature Range -20-120 °F
- Thread (G) UNF M18 x 1.5
- Type Double Sealed
- Oil Hole 3 places
- Needle Construction Caged
- Bearing Style Cylindrical OD
- Dynamic Load Rating (N) 14800
- Description Hex Hole
- Track Capacity 14500 N
- Brand IKO
- Series CFES
- Manufacturers Part Number CFES18BUU
- Permissible Static Load (N) 25200
- Radial Clearance 0.010 to 0.030
