IKO

Model # :WBB1173908

MPN #: CR12UUR

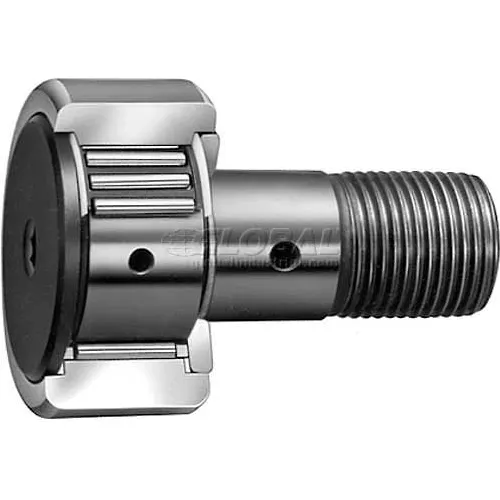

IKO Cam Follower-INCH Caged Crowned OD Screwdriver Slot DBL Sealed 3/4" OD 1/2"W 3/8 - 24 THR

Product Description
IKO Cam Follower-INCH, Caged, Crowned OD, Screwdriver Slot, Double Sealed, 3/4" OD, 1/2" Width, 3/8 - 24 Thread

IKO Cam Followers consist of needle rollers, stud acting inner ring raceway and thick-walled outer ring to withstand heavy rolling or shock loads. Cam Followers are available with cylindrical or crowned outer rings. The crowned outer ring alleviates uneven loads resulting from deflection, bending or misalignment in mounting. There are two internal designs available; one with a cage for high speed, and another with a full complement for heavy loads. Cam Followers are follower bearings for cam mechanisms or linear motions, and widely used for machine tools, industrial robots, electronic devices and office automation equipment utilizing their high rigidity and accuracy. These cam followers are provided with pre-packed grease. Sufficient lubrication is also needed between cam followers and steel track on which cam followers run, to prevent seizure and to reduce friction. An appropriate nut is supplied with the stud.

PRICE
$20.25

Min. purchase quantity is 3
3
3
Ships in 5 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Clamping Diameter (F) Minimum13.494 (17/32)
Static Load Rating5110 N
Outside Dimension Tolerance+0 / -0.50 mm
Outside Dimension (D)19.050 (3/4)
Width (C) Tolerance+0 / -0.130
Max Torque10.8 lb-in
Dimension B14.2mm (0.56")
Width (C)12.700 (1/2)
Dimension G22.381mm (3/32")
Crown Radius (R)500 in
Dimension B222.225mm (7/8")
Dimension C10.794mm (1/32) in
Tolerance For Mounting Hole+0.028 / +0.013 (+.0011 / + .0005)
Stud Diameter (D1)9.525 (3/8)
Tolerance For Stud Diameter+0.25 / -0 mm
Corner Radius (R)0.794 (1/32) in
Dimension B36.350mm (1/4")
Dimension G19.525mm (3/8")

Product Details

Thread (G) UNF3/8 - 24
Bearing StyleCrowned OD
Manufacturers Part NumberCR12UUR
BrandIKO
TypeDouble Sealed
Dynamic Load Rating (N)4420
Oil HoleStud Head, End, Outside
SeriesCR
Needle ConstructionCaged
Radial Clearance0.005 to 0.025
Temperature Range-20-120 °F
Track Capacity1340 N
DescriptionScrewdriver Slot
