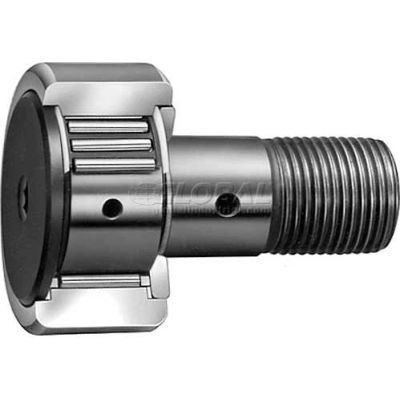

Shown with Hex Hole
Customers Also Viewed
Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black
Free Shipping
IKO Cam Follower-INCH, Caged, Crowned OD, Screwdriver Slot, 1/2" OD, 3/8" Width, No.10-32 Thread
IKO Cam Followers consist of needle rollers, stud acting inner ring raceway and thick-walled outer ring to withstand heavy rolling or shock loads. Cam Followers are available with cylindrical or crowned outer rings. The crowned outer ring alleviates uneven loads resulting from deflection, bending or misalignment in mounting. There are two internal designs available; one with a cage for high speed, and another with a full complement for heavy loads. Cam Followers are follower bearings for cam mechanisms or linear motions, and widely used for machine tools, industrial robots, electronic devices and office automation equipment utilizing their high rigidity and accuracy. These cam followers are provided with pre-packed grease. Sufficient lubrication is also needed between cam followers and steel track on which cam followers run, to prevent seizure and to reduce friction. An appropriate nut is supplied with the stud.
IKO Cam Followers consist of needle rollers, stud acting inner ring raceway and thick-walled outer ring to withstand heavy rolling or shock loads. Cam Followers are available with cylindrical or crowned outer rings. The crowned outer ring alleviates uneven loads resulting from deflection, bending or misalignment in mounting. There are two internal designs available; one with a cage for high speed, and another with a full complement for heavy loads. Cam Followers are follower bearings for cam mechanisms or linear motions, and widely used for machine tools, industrial robots, electronic devices and office automation equipment utilizing their high rigidity and accuracy. These cam followers are provided with pre-packed grease. Sufficient lubrication is also needed between cam followers and steel track on which cam followers run, to prevent seizure and to reduce friction. An appropriate nut is supplied with the stud.
Weights & Dimensions
- Dimension C1 0.794mm (1/32) in
- Stud Diameter (D1) 4.826
- Width (C) 9.525 (3/8)
- Tolerance For Mounting Hole +0.028 / +0.013 (+.0011 / + .0005)
- Crown Radius (R) 500 in
- Tolerance For Stud Diameter +0.25 / -0 mm
- Clamping Diameter (F) Minimum 8.334 (21/64)
- Corner Radius (R) 0.397 (1/64) in
- Outside Dimension Tolerance +0 / -0.50 mm
- Outside Dimension (D) 12.700 (1/2)
- Static Load Rating 2140 N
- Width (C) Tolerance +0 / -0.130
- Max Torque 1.4 lb-in
- Dimension B2 15.875mm (5/8")
- Dimension B 10.9mm (0.43")
- Dimension G1 6.350mm (1/4")
Product Details
- Temperature Range -20-120 °F
- Thread (G) UNF No.10-32
- Oil Hole Stud head only
- Needle Construction Caged
- Bearing Style Crowned OD
- Dynamic Load Rating (N) 2520
- Description Screwdriver Slot
- Track Capacity 770 N
- Brand IKO
- Series CR
- Manufacturers Part Number CR8-1R
- Radial Clearance 0.003 to 0.017
