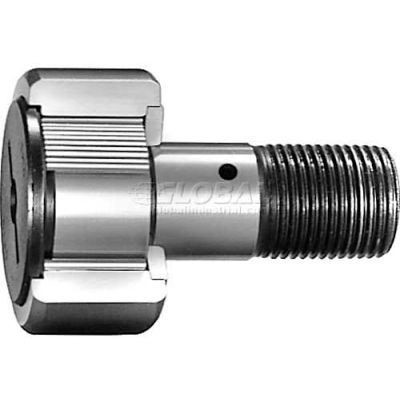

IKO Cam Follower-INCH, Full Complement, Hex Hole, 1/2" OD, 11/32" Width, No.10-32 Thread
IKO Cam Followers consist of needle rollers, stud acting inner ring raceway and thick-walled outer ring to withstand heavy rolling or shock loads. Cam Followers are available with cylindrical or crowned outer rings. The crowned outer ring alleviates uneven loads resulting from deflection, bending or misalignment in mounting. There are two internal designs available; one with a cage for high speed, and another with a full complement for heavy loads. Cam Followers are follower bearings for cam mechanisms or linear motions, and widely used for machine tools, industrial robots, electronic devices and office automation equipment utilizing their high rigidity and accuracy. These cam followers are provided with pre-packed grease. Sufficient lubrication is also needed between cam followers and steel track on which cam followers run, to prevent seizure and to reduce friction. An appropriate nut is supplied with the stud.
IKO Cam Followers consist of needle rollers, stud acting inner ring raceway and thick-walled outer ring to withstand heavy rolling or shock loads. Cam Followers are available with cylindrical or crowned outer rings. The crowned outer ring alleviates uneven loads resulting from deflection, bending or misalignment in mounting. There are two internal designs available; one with a cage for high speed, and another with a full complement for heavy loads. Cam Followers are follower bearings for cam mechanisms or linear motions, and widely used for machine tools, industrial robots, electronic devices and office automation equipment utilizing their high rigidity and accuracy. These cam followers are provided with pre-packed grease. Sufficient lubrication is also needed between cam followers and steel track on which cam followers run, to prevent seizure and to reduce friction. An appropriate nut is supplied with the stud.
- BRAND IKO
- BEARING STYLE Cylindrical OD
- DYNAMIC LOAD RATING (N) 4260
- STATIC LOAD RATING (N) 4750
- DIMENSION B 10.2mm (0.40")
- O.D. TOLERANCE (mm) +0 / -0.25
- OD (D) mm/inch 12.700 (1/2)
- MANUFACTURERS PART NUMBER CR8VB
- DESCRIPTION Hex Hole
- OIL HOLE None
- TYPE --
- WIDTH (C) mm/inch 8.731 (11/32)
- SERIES CR
- TORQUE MAX (Nm) 1.4
- WIDTH (C) TOLERANCE (mm) +0 / -0.130
- DIMENSION g2 --
- NEEDLE CONSTRUCTION Full Complement
- DIMENSION H 3.175mm (1/8")
- DIMENSION g1 --
- CROWN RADIUS (R) mm (inch) --
- CORNER RADIUS ( r ) mm (inch) 0.397 (1/64)
- TRACK CAPACITY (N) 2140
- CLAMPING DIAMETER (f) MINIMUM mm (inch) 8.334 (21/64)
- DIMENSION G1 6.350mm (1/4")
- DIMENSION G2 --
- STUD DIAMETER (d1) mm (inch) 4.826
- TOLERANCE FOR MOUNTING HOLE (mm / inch) +0.028 / +0.013 (+.0011 / + .0005)
- TOLERANCE FOR STUD DIAMETER (mm) +0.25 / -0
- TEMPERATURE RANGE °F -20°-120°F
- DIMENSION B3 --
- THREAD (G) UNF No.10-32
- RADIAL CLEARANCE 0.003 to 0.017
- DIMENSION h 3.175mm (1/8")
- DIMENSION b 10.2mm (0.40")
- DIMENSION b2 12.700mm (1/2")
- DIMENSION C1 0.794mm (1/32")
