IKO

Model # :WBB1173813

MPN #: CR12V

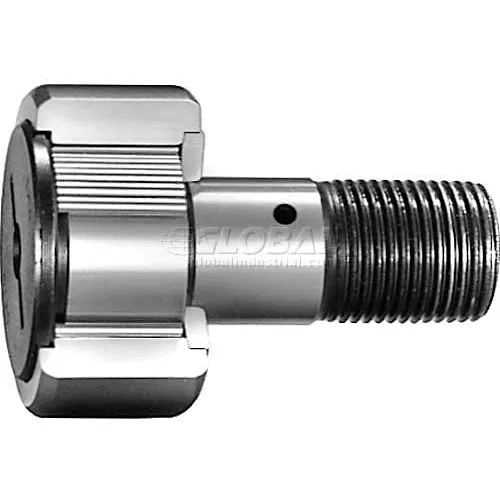

IKO Cam Follower Full Complement Screwdriver Slot, 3/4" OD, 1/2"W, 3/8 - 24 Thread

Product Description
IKO Cam Follower-INCH, Full Complement, Screwdriver Slot, 3/4" OD, 1/2" Width, 3/8 - 24 Thread

IKO Cam Followers consist of needle rollers, stud acting inner ring raceway and thick-walled outer ring to withstand heavy rolling or shock loads. Cam Followers are available with cylindrical or crowned outer rings. The crowned outer ring alleviates uneven loads resulting from deflection, bending or misalignment in mounting. There are two internal designs available; one with a cage for high speed, and another with a full complement for heavy loads. Cam Followers are follower bearings for cam mechanisms or linear motions, and widely used for machine tools, industrial robots, electronic devices and office automation equipment utilizing their high rigidity and accuracy. These cam followers are provided with pre-packed grease. Sufficient lubrication is also needed between cam followers and steel track on which cam followers run, to prevent seizure and to reduce friction. An appropriate nut is supplied with the stud.

PRICE
$15.25

Min. purchase quantity is 4
4
4
Ships in 7 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Clamping Diameter (F) Minimum13.494 (17/32)
Static Load Rating12300 N
Outside Dimension Tolerance+0 / -0.25 mm
Outside Dimension (D)19.050 (3/4)
Width (C) Tolerance+0 / -0.130
Max Torque10.8 lb-in
Dimension B14.2mm (0.56")
Width (C)12.700 (1/2)
Dimension G22.381mm (3/32")
Dimension B222.225mm (7/8")
Dimension C10.794mm (1/32) in
Tolerance For Mounting Hole+0.028 / +0.013 (+.0011 / + .0005)
Stud Diameter (D1)9.525 (3/8)
Tolerance For Stud Diameter+0.25 / -0 mm
Corner Radius (R)0.794 (1/32) in
Dimension B36.350mm (1/4")
Dimension G19.525mm (3/8")

Product Details

Thread (G) UNF3/8 - 24
Bearing StyleCylindrical OD
Manufacturers Part NumberCR12V
BrandIKO
Dynamic Load Rating (N)8710
Oil HoleStud Head, End, Outside
SeriesCR
Needle ConstructionFull Complement
Radial Clearance0.005 to 0.025
Temperature Range-20-120 °F
Track Capacity4500 N
DescriptionScrewdriver Slot
