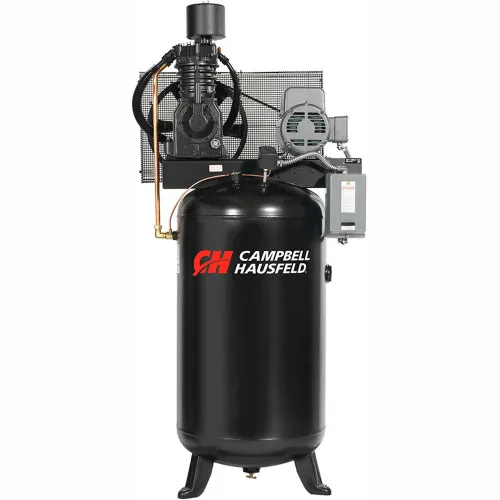

Campbell Hausfeld® CE7001,7.5 HP,Two-Stage Comp.,80 Gal,Vert,175 PSI,25 CFM,3-PH 208-230/460V

Name: Campbell Hausfeld® CE7001,7.5 HP,Two-Stage Comp.,80 Gal,Vert,175 PSI,25 CFM,3-PH 208-230/460V
Brand: Campbell Hausfeld
SKU: B766463
Price: 3599.0 USD
Availability: InStock

Write a Review

Questions & Answers (0)

Shop All Two-Stage Piston Compressors, Vertical, 3-Phase

Product Description

Campbell Hausfeld® CE7001,7.5 HP,Two-Stage Comp.,80 Gal,Vert,175 PSI,25 CFM,3-PH 208-230/460V

Features

Designed and constructed for heavy duty commercial and industrial applications.
Delivers up to 15,000 hours of pump life.
Cast Iron Two-Stage Pump
Stainless steel valves
Ductile iron crankshaft
Oil sight glass
Low pump RPM
Precision balanced flywheel

Warranty Disclaimer

Warranty coverage for Campbell Hausfeld only applies to the United States and Canada
Products sold outside of the United States and Canada will void manufacturer's warranty

PRICE

$3,599.00

Ships in 7 Business Days

Add or Change Zip Code(s)

Easy online or call-in returns. Read return policy

Specifications

Weights & Dimensions

Length	35 in
Width	45 in
Height	83 in

Weight	540 lbs
Tank Size	80 gal
Tank Outlet	3/4"

Product Details

Oil Type	Oil Lubricated
Air Dryer	No
Oil System	Splash Lubricated
Pump Drive	Belt Drive
Pump Material	Cast Iron
Tank Drain Valve	Automatic
Max PSI	175 psi
Phase	3
Tank Orientation	Vertical
Oil Sight Glass	Yes

Manufacturers Part Number	CE7001
Pump Type	Two-Stage
Low Oil Shutoff	No
Brand	Campbell Hausfeld
CFM	25 CFM
Horsepower	7.5 HP
Color	Black
After Cooler	Yes
Voltage	208-230/460 V
Air Filter	No

Warranty

3 yr

Compliance & Certifications

Certifications

ASME Certified
