Marathon's pump line of motors includes single or three phase jet pump motors, square flange motors, close-coupled pump motors, and P-Base vertical solid shaft pump motors. The motors are stocked in totally enclosed fan cooled, open drip proof, and many explosion Proof Motors.

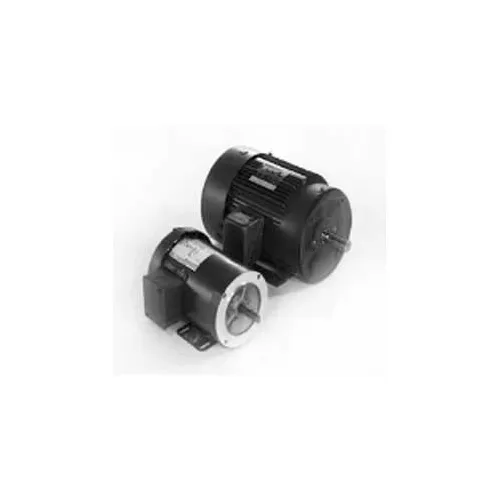

Marathon Motors Centrifugal Pump Motor, J064, 1.5HP, 208-230/460V, 3600RPM, 3PH, 56J FR, TEFC
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$655.00
1
1
Ships in 2 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Weight | 26 lbs |
| Opposite End Bearing Size | 6203 |
| Dimension C | 12-5/16 in |
| Drive End Bearing Size | 6203 |
Product Details
| 60 Hertz kW | 1.12 kW |
| 50 Hertz Horsepower | 1 HP |
| 50 Hertz SF | 1.15 |
| KVA Code | K |
| Motor RPM 50 Hertz | 3000 rpm |
| IP Code | 43 |
| 60 Hertz RPM | 3600 rpm |
| Motor RPM 60 Hertz | 3600 rpm |
| 50 Hertz Voltage | 190/380 V |
| 50 Hertz FLE | 80.00 Percent FLE |
| Mounting Location | C-Face Rigid |
| Phase | 3 |
| Manufacturers Part Number | J064 |
| Enclosure | TEFC |
| 50 Hertz Full Load Amps | 3.8/1.9 FLA |
| Service Factor | 1.15 |
| Bearing Drive End | 6203 |
| Brand | Marathon Motors |
| 50 Hertz Kilowatts | 0.75 kW |
| RPM | 3,600, 3,000 rpm |
| Insulation Class | B |
| Horsepower | 1-1/2 HP |
| Orientation | Horizontal |
| Frame | 56J |
| Starting Type | Across the Line |
| Enclosure Type | Totally Enclosed |
| Voltage | 208 - 230, 460 V |
| Full Load Efficiency | 80 |
| Full Load Amps | 4.6-4.6/2.3 FLA |
| Duty | Continuous |
| Ambient Temperature | 40 °C |
| RPM Range | 3001-3600 rpm |
Compliance & Certifications
| CSA Certified | Y |
| CE Approved | Y |
| NEMA Design | B |
| UL | Recognized Construction |
