For use on pumps designed for fire pump duty and installed per NFPA-20. These Dripproof motors are intended for installation in relatively clean and dry environments. Fire Pumps motors are not recommended for use with variable frequency drives.

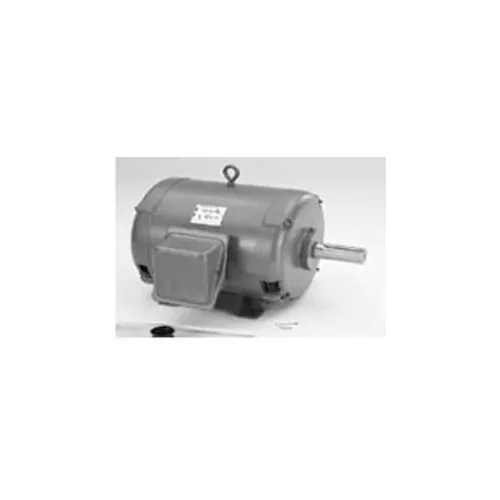

Marathon Motors Fire Pump Motor, H814, 400HP, 460V, 1800RPM, 3PH, 447TS FR, DP
Write a Review
|
Questions & Answers (0)
Product Description
PRICE
$25,999.00
1
1
Free Shipping Ships in 7 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy
Weights & Dimensions
| Weight | 2220 lbs |
| Opposite End Bearing Size | 6314 |
| Dimension C | 39-9/16 in |
| Drive End Bearing Size | 6314 |
Product Details
| 60 Hertz kW | 300 kW |
| 50 Hertz Horsepower | 300 HP |
| 50 Hertz SF | 1.15 |
| KVA Code | F |
| Motor RPM 50 Hertz | 1500 rpm |
| IP Code | 12 |
| 60 Hertz RPM | 1800 rpm |
| Motor RPM 60 Hertz | 1800 rpm |
| 50 Hertz Voltage | 380 V |
| 50 Hertz FLE | 95.00 Percent FLE |
| Mounting Location | Rigid |
| Phase | 3 |
| Manufacturers Part Number | H814 |
| Enclosure | DP |
| 50 Hertz Full Load Amps | 410 FLA |
| Service Factor | 1.15 |
| Bearing Drive End | 6314 |
| Brand | Marathon Motors |
| 50 Hertz Kilowatts | 224 kW |
| RPM | 1,800, 1,500 rpm |
| Insulation Class | F |
| Horsepower | 400 HP |
| Orientation | Horizontal |
| Frame | 447TS |
| Starting Type | PWS & YDRUN |
| Enclosure Type | Open/Drip Proof |
| Voltage | 460 V |
| Full Load Efficiency | 95.4 |
| Full Load Amps | 450 FLA |
| Duty | Continuous |
| Ambient Temperature | 50 °C |
| RPM Range | 1701-1800 rpm |
Compliance & Certifications
| CSA Certified | Y |
| CE Approved | Y |
| NEMA Design | B |
| UL | UL Listed |
