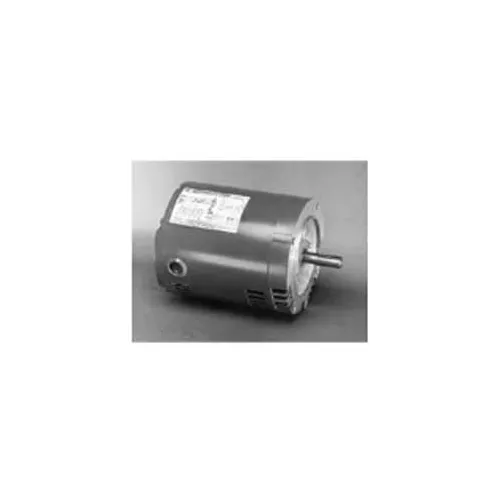

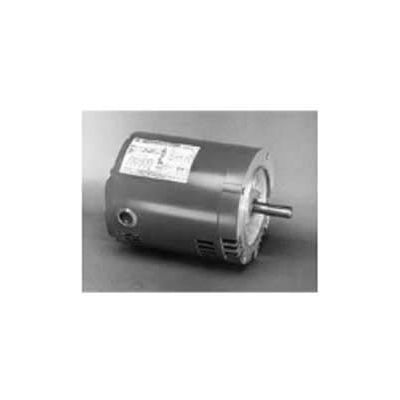

Marathon Motors Centrifugal Pump Motor, K222, 1.5HP, 208-230/460V, 3600RPM, 3PH, 56C FR, DP
Marathon's pump line of motors includes single or three phase jet pump motors, square flange motors, close-coupled pump motors, and P-Base vertical solid shaft pump motors. The motors are stocked in totally enclosed fan cooled, open drip proof, and many explosion Proof Motors.
Marathon's pump line of motors includes single or three phase jet pump motors, square flange motors, close-coupled pump motors, and P-Base vertical solid shaft pump motors. The motors are stocked in totally enclosed fan cooled, open drip proof, and many explosion Proof Motors.
Product Details
- Mounting Location C-Face Footless
- Bearing Drive End 6203
- RPM 3600 rpm
- Ambient Temperature 40 °C
- KVA Code K
- Insulation Class B
- RPM Range 3001-3600 rpm
- Voltage 208-230/460 V
- Frame 56C
- Service Factor 1.3
- Horsepower 1-1/2 HP
- Enclosure Type Open/Drip Proof
- Is_Motor Yes
- Duty Continuous
- Enclosure DP
- Phase 3
- Orientation Horizontal or Vertical
- 60 Hertz RPM 3600 rpm
- Starting Type Squirrel Cage Induction
- Full Load Efficiency 0
- Brand Marathon Motors
- Full Load Amps 5.0-4.8/2.4 FLA
- Motor RPM 60 Hertz 3600 rpm
- Manufacturers Part Number K222
Compliance & Certifications
- NEMA Design B
- CSA Certified Y
- UL Y
Weights & Dimensions
- Drive End Bearing Size 6203
- Opposite End Bearing Size 6203
- Weight 24 lbs
