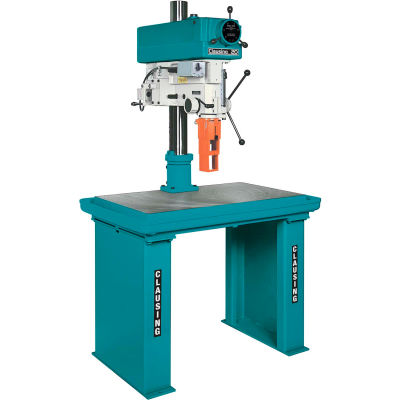

Clausing Atlas 2284-300 20" Head & Column Drill 300-2000 RPM Vari-SPD 3PH 208V

Elevating mechanism not included

Clausing Atlas 2284-300 20" Head & Column Drill 300-2000 RPM Vari-SPD 3PH 208V

Item #: WBB1190944

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $5,166.00

$861.00/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Clausing Atlas 2284-300 20" Head & Column Drill 300-2000 RPM Vari-SPD 3PH 208V

Features:
  • 3MT Spindle
  • Elevating Mechanism for Head Assembly
  • On/Off Switch
  • Belt Guard
  • Spindle Guard
  • Motors and Switches Installed, Wired, and Ready to Connect to Power
  • 8' 3-Wire Cord and Plug

  • COLUMN DIAMETER INCHES 4
  • DESCRIPTION Drill Press
  • WEIGHT LBS 390
  • BRAND Clausing
  • MOTOR VOLTAGE 208V
  • MOTOR HORSEPOWER 1.5 HP
  • DEPTH INCHES 3.25
  • MOTOR PHASE 3 Ph
  • SPINDLE TRAVEL (IN.) 6.5
  • MANUFACTURERS PART NUMBER 2284-300
  • SIZE 20"
  • HEIGHT INCHES 51.625
  • DISTANCE SPINDLE TO COLUMN (IN.) 10
  • WIDTH INCHES 20
  • QUILL DIAMETER (IN.) 2.5
  • MODEL Atlas
  • TYPE Variable Speed
  • SPINDLE TO TABLE INCHES 25.437
  • SPINDLE NOSE 3MT 1.74" OD
  • DRILLING CAPACITY MILD STEEL 3/4"
  • HAND FEED CAPACITY (IN.) 1.25
  • DRILLS TO CENTER OF CIRCLE (IN.) 20
  • QUILL RETURN SPRING CAPACITY LBS 40
  • COLUMN THICKNESS INCHES 3/8
  • COLUMN LENGTH (IN.) 43
  • STYLE Head & Column Assembly
