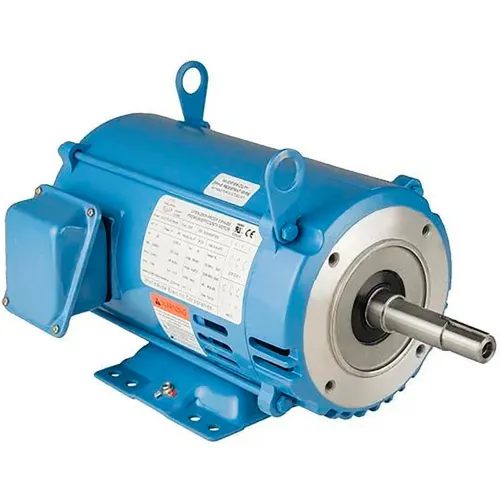

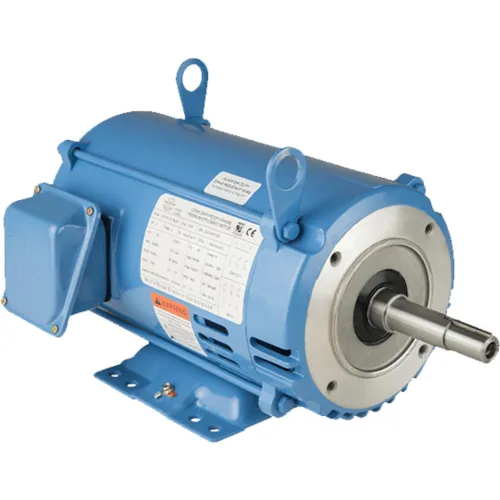

Worldwide Electric Close Coupled Motor, ODP, 20 HP, 3600 RPM, 230/460V, 254JP Frame, C-Face w/ Feet

Name: Worldwide Electric Close Coupled Motor, ODP, 20 HP, 3600 RPM, 230/460V, 254JP Frame, C-Face w/ Feet
Brand: Worldwide Electric Corporation
SKU: B3197632
Price: 2149.0 USD
Availability: InStock

Write a Review

Questions & Answers (0)

Product Description

Image is for representational purposes only. Actual product may vary. Please refer to the specifications below for product details.

Designed to meet the demands of pumping applications. Worldwide Electric is a leading manufacturer of Pump Motors, supplying efficient, high-performance solutions for commercial, industrial, and municipal water systems.

Close-coupled – Open Drip Proof (ODP) motors. Designed to meet the demands of industrial and commercial pumping applications requiring a three-phase, lightweight, compact motor with JM or JP shafts compatibility.

230/460 Volt

Open Drip Proof (ODP) Enclosure

Rolled Steel Frame

IP23 Protection

1.15 SF

Class F Insulation

C-Face with Feet

Premium Efficiency

Inverter Duty, 10:1 VT

Spike Resistant Wire, per NEMA MG-1, Part 31

Suitable for 50 Hz Operation with 1.0 SF

PRICE

$2,149.00

Ships in 3 Business Days

Add or Change Zip Code(s)

Easy online or call-in returns. Read return policy

Specifications

Weights & Dimensions

Weight

247 lbs

Product Details

RPM	3,600 rpm
Insulation Class	F
Horsepower	20 HP
Frame	254JP
Hertz	60 Hz
Motor RPM 60 Hertz	3,600 rpm
Enclosure Type	Open Drip Proof
Mounting Location	C-Face with Feet

Voltage	230, 460 V
Full Load Efficiency	91
Phase	3
Full Load Amps	22.1 FLA
Manufacturers Part Number	OCCP20-36-254JP
Enclosure	ODP
Service Factor	1.15
Brand	Worldwide Electric Corporation
