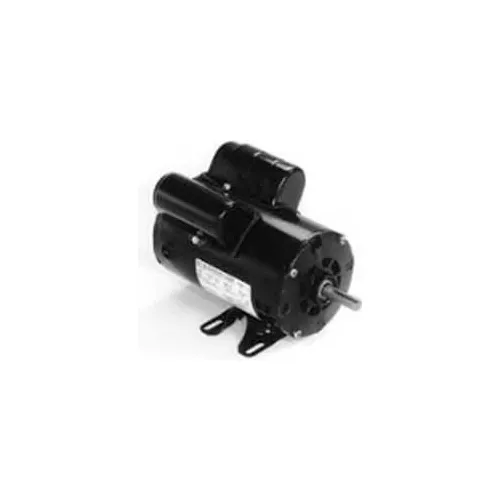

Marathon Motors, D017, 056B34D5302, 5HP, 3600RPM, 230V, 1PH, 56h FR, DP

Marathon's Single Phase extensive line of General Purpose motors are available in ODP and TEFC construction, Foot Mounted and Footless. Horsepower sizes available from stock range from 1/12 HP through 15 HP.

Compressor Duty Motor: 5HP, 3450RPM, 56 Frame, Drip-Proof (DP), 230V, 1PH, Continuous duty, Manual thermal protection, 1.0 Service Factor, Rigid Mount. Motors are designed for air compressor, pump, and fan and blower duty applications which require high breakdown torque and rugged mechanical construction. Mechanical Features: Prelubricated double shielded, amply sized, ball bearing construction to accommodate varying belt loads and tension. Electrical Features: High efficiency energy saving designs. Class F copper windings. Class F varnish. High starting and breakdown torque. Motors are ...

General Purpose, Capacitor Start-Capacitor Run Motor: 5HP, 3500 RPM, Totally-Enclosed Fan-Cooled (TEFC) Enclosure, C Face Mount, 230V, 1PH, 60HZ, Name Plate Amps 19.8, Continuous duty, 1.15 Service Factor, No thermal protection, Efficiency: 82.5, Efficiency Type: Standard, Ambient 40 C, Selective CCW Rotation, Shaft Diameter 1 1/8. Totally enclosed fan cooled (TEFC) enclosure has no vent openings, and is tightly enclosed to prevent the free exchange of air, but is not airtight. An external fan is an integral part of the motor and provides cooling by blowing air around the outside frame of ...

Century, Air Compressor Motor, Capacitor Start, Capacitor Run, Single Or Dual Voltage, 5 hp, 3450 rpm, 1 speed, 208-230v, ODP, 22.0 amp, Clockwise, Ball/Ball bearings

Compressor Duty Motor: 5HP, 3450RPM, 145 Frame, Drip-Proof (DP), 230V, 1PH, Continuous duty, Manual thermal protection, 1.0 Service Factor, Rigid Mount. Motors are designed for air compressor, pump, and fan and blower duty applications which require high breakdown torque and rugged mechanical construction. Mechanical Features: Prelubricated double shielded, amply sized, ball bearing construction to accommodate varying belt loads and tension. Electrical Features: High efficiency energy saving designs. Class F copper windings. Class F varnish. High starting and breakdown torque. Motors are ...
