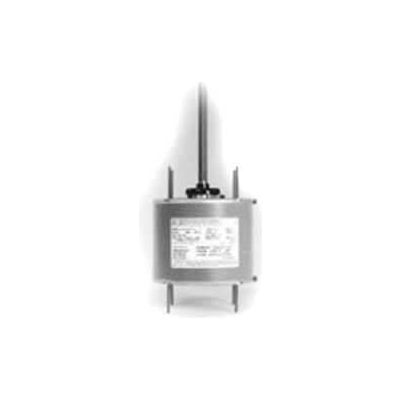

Marathon Motors Condenser Fan Motor, X469, 3/4HP, 1075 RPM, 208-230 V, 1 PH, 48Y FR, TENV

Picture may not represent actual product

Marathon Motors Condenser Fan Motor, X469, 3/4HP, 1075 RPM, 208-230 V, 1 PH, 48Y FR, TENV

Item #: WBB871706

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $220.95

Save $11.05 with 5% off when you use your Global Industrial Credit Card.

Quantity

Marathon Motors Condenser Fan Motor, X469, 3/4HP, 1075 RPM, 208-230 V, 1 PH, 48Y FR, TENV

Direct drive condenser fans mounted vertically, shaft up. Models with open brackets should be mounted where they are shielded from rain. These motors need to be mounted within the airflow of the fan for proper cooling.

Product Details

  • Mounting Location Extended Studs - Footless
  • Number of Speeds 1
  • Assembly Required F1 Only
  • Rotation CCW °
  • Ambient Temperature 40 °C
  • Insulation Class B
  • RPM Range 1001-1100 rpm
  • Voltage 208-230 V
  • Rated RPM 1075
  • Frame 48Y
  • Service Factor 1
  • Horsepower 3/4 HP
  • Enclosure Type Totally Enclosed
  • Is_Motor Yes
  • Duty Continuous AOM
  • Phase 1
  • Enclosure TENV
  • Brand Marathon Motors
  • Bearing Type Ball
  • Full Load Amps 4.2-3.65 FLA
  • Motor RPM 60 Hertz 1075 rpm
  • Thermal Protection Automatic (under locked rotor only)
  • Hertz 60 Hz
  • Manufacturers Part Number HG695

Weights & Dimensions

  • Drive End Bearing Size 6203
  • Opposite End Bearing Size 6203
  • Weight 21 lbs
