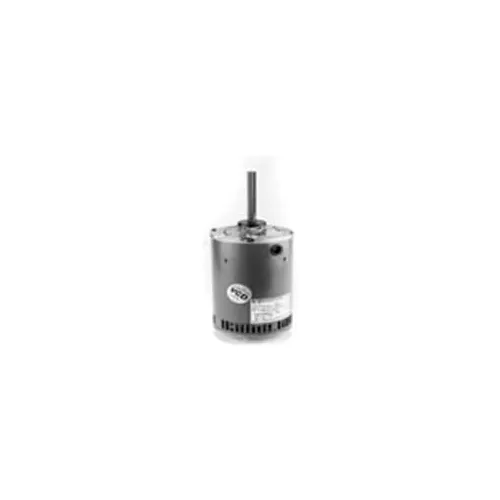

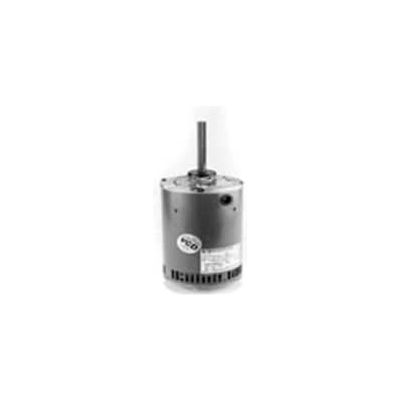

Marathon Motors Condenser Fan Motor, X503, 1 1/2HP, 1200 RPM, 200-230/460 V, 3 PH, 56Y FR, OPAO
Direct drive condenser fans mounted vertically, shaft up. Models with open brackets should be mounted where they are shielded from rain. These motors need to be mounted within the airflow of the fan for proper cooling.
Direct drive condenser fans mounted vertically, shaft up. Models with open brackets should be mounted where they are shielded from rain. These motors need to be mounted within the airflow of the fan for proper cooling.
- BRAND Marathon Motors
- MANUFACTURERS PART NUMBER H167
- HORSEPOWER 1 1/2
- MOTOR RPM 60Hz 1200
- VOLTAGE 200-230/460
- PHASE 3
- FRAME 56Y
- ENCLOSURE TYPE Open/Drip Proof
- HERTZ 60
- SPEEDS 1
- ROTATION CCW/CW
- THERMAL PROTECTION Automatic (under locked rotor only)
- RATED RPM 1200
- MOUNTING Round Belly Band
- BEARING TYPE Ball
- DRIVE END BEARING SIZE 6203
- OPPOSITE END BEARING SIZE 6203
- INSULATION CLASS H
- SERVICE FACTOR 1
- AMBIENT TEMP C 70
- DUTY Continuous AOM
- is_motor Yes
- WEIGHT LBS 35
- RPM RANGE 1101-1200
- ENCLOSURE OPAO
- ASSEMBLY F1 Only
- FL AMPS 5.5-5.4/2.7
- OPPOSITE END BEARING Ball
