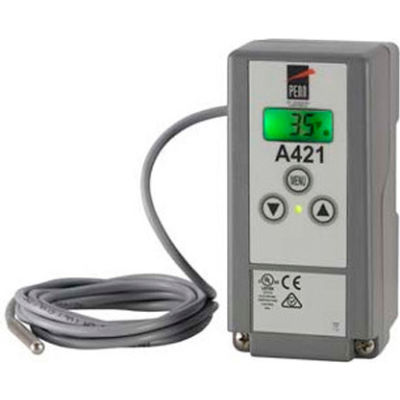

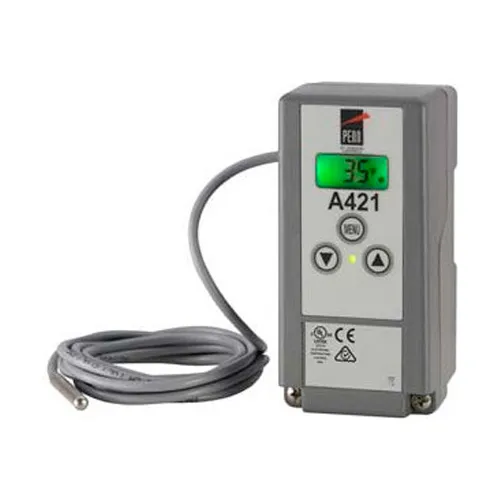

Johnson Controls Digital Temperature Controller A421ABC-06C, 120/240 VAC, SPDT, Nema 1

Johnson Controls Digital Temperature Controller A421ABC-06C, 120/240 VAC, SPDT, Nema 1

Item #: WBB2232289

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $137.95

Save $6.90 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Fostoria® TPI Portable Infrared Heater, 1.45kW, 120V, 14-1/2"W x 25"H x 11-1/2"D

Fostoria® TPI Portable Infrared Heater, 1.45kW, 120V, 14-1/2"W x 25"H x 11-1/2"D

Honeywell Digital Temperature Controller T775A2009, 1 Temp. Input, 1 SPDT Relay

Honeywell Digital Temperature Controller T775A2009, 1 Temp. Input, 1 SPDT Relay

Johnson Controls Digital Temperature Controller A421ABC-03C, 120/240 VAC, SPDT, Nema 1

Johnson Controls Digital Temperature Controller A421ABC-03C, 120/240 VAC, SPDT, Nema 1

Johnson Controls Digital Temperature Controller A421GBF-02C, 24 VAC, SPDT, Nema 1

Johnson Controls Digital Temperature Controller A421GBF-02C, 24 VAC, SPDT, Nema 1

Johnson Controls Temperature Controller A19QSC-1C Remote Bulb w/ Nema 4X Enclosure

Johnson Controls Temperature Controller A19QSC-1C Remote Bulb w/ Nema 4X Enclosure

PECO Industrial Temperature Controller W/ Power Cord TF115P-002 Range 40°-110°F Nema 4X

PECO Industrial Temperature Controller W/ Power Cord TF115P-002 Range 40°-110°F Nema 4X

PECO Industrial Multi-Stg. Temperature Controller TH109-009 Temp. Range 40°-100°F Nema 4X

PECO Industrial Multi-Stg. Temperature Controller TH109-009 Temp. Range 40°-100°F Nema 4X

Honeywell High Or Low Limit Aquastat Controller, L4006A2007, W/ 5 F To 30 F Differential

Honeywell High Or Low Limit Aquastat Controller, L4006A2007, W/ 5 F To 30 F Differential

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Global Industrial™ Outdoor Ashtray, 1-1/2 Gallon, Black

Free Shipping

Fantech 12" Direct Drive Axial Roof Vent 5ADE12BA, 1/4 HP, 115V, 1 PH, 1423 CFM, ODP

Fantech 12" Direct Drive Axial Roof Vent 5ADE12BA, 1/4 HP, 115V, 1 PH, 1423 CFM, ODP

Qwik Products X1 Universal Constant Torque ECM replacement board, QT6101 - Pkg Qty 5

Qwik Products X1 Universal Constant Torque ECM replacement board, QT6101 - Pkg Qty 5

Johnson Controls Digital Temperature Controller A421ABC-06C, 120/240 VAC, SPDT, Nema 1

The A421 Series controls are single stage, line-voltage electronic temperature controls with a single-pole, double-throw (SPDT) output relay. These can be used to control a wide variety of single-stage refrigeration or HVAC equipment with an ambient temperature range of -40 to 212°F. Model A421ABC-06C features standard Type 1 (NEMA) IP20 high-impact plastic enclosure suitable for surface or DIN rail mounting and rated for either 120 or 240 VAC. Includes A99BB-600C PTC temperature sensor with a 2 in. standard probe and 19.7 ft. PVC cable.

Features:
  • Control Front Panel LCD
  • Basic and Advanced Programming Menu
  • On/Off Temperature Adjustment
  • Switch-Activated Temperature Setback
  • Adjustable Anti-Short Cycle Delay
  • Adjustable Sensor Offset
  • Optional Restricted Adjustment Mode
  • Sensor Failure Mode

Weights & Dimensions

  • Depth 2-1/2 in
  • Lead Wire Length 19-1/2 ft
  • Width 2-7/16 in
  • Bulb Size 2 in
  • Display Size 1.5 x 5 in
  • Height 5 in
  • Weight 1 lbs

Product Details

  • Switch Action SPDT
  • Voltage 240 / 120 V
  • Temperature Control Range -40 to 212 °F
  • Includes A99 Temperature Sensor
  • Type Heat & Cool
  • For Use With Temperature Control
  • Stages Single
  • Brand Johnson Controls
  • Temperature Operating Range -40 to 150 °F

Warranty

  • Warranty 1 yr

Compliance & Certifications

  • NEMA Rating 1
  • Certifications cULus
Customer Review

Not Yet Reviewed

Product Q & A

There are no questions for this product.

Warranty

This product has a 12-month manufacturer's limited warranty for parts and a 12-month manufacturer's limited warranty for labor. Protect your purchase beyond the manufacturer's limited warranty.
