In/Out 1-1/16" #12 SAE; Work Ports 1-1/16" #12 SAE or 3/4"-16 #8 SAE Optional Features Available
Power Beyond (permits use of neutral flow at system pressure); also permits field conversion from closed center to open center (tandem) operation
Air Operated - AS1
Cable Operated: Cable Connection Kit B302890 Text Definitions
3 Way = Power Up, Gravity Down
4 Way = Power Up, Power Down
3 Position = Spool / Handle has 3 positions: Up/Neutral/Down
Spring Centered = Spool returns to neutral when operator releases
Detent = Valve Spool stays in position until changed by operator Air Cylinder Converts valve from manual to air operated). Cable Connection Kit (Converts valve from manual to cable operated) Other Valves available. Contact customer service with your requirements.
MANUFACTURERS PART NUMBERHV3331NAAG2EC0
PORT SIZEIn/Out - 1-1/16 #12 SAE, Work - 3/4-16 #8 SAE
SPOOL ACTION3 Way - Detent In, 4 Way - Spring Center, 4 Way
Not Yet Reviewed
Product Q & A
There are no questions for this product.

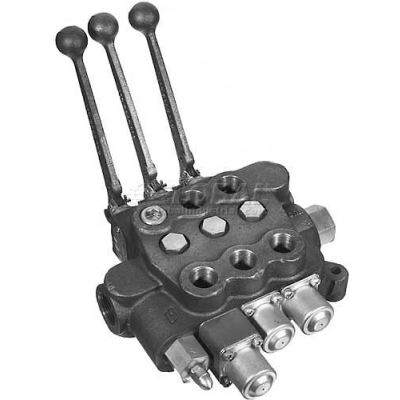

Buyers Directional Control Valve, HV3331NAAG2EC0, 3 Spools, 3 Way Spool Action
